Lin Engineering 4170-5718X-15P-HP10-ND
https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405cb7790c2cde818d2f3f2/mfg_5718l-01p-hp50.jpg
TT-DKEY-4170-5718X-15P-HP10-ND
NEMA 23 - 1 STACK STEPPER + 10:1
Product Attributes:
| Series | 5718 |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | - |
| Steps per Revolution | 4000 |
| Step Angle | - |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 1,000 / 7,060 |
| Size / Dimension | Square - 2.25" x 2.25" (57.20mm x 57.20mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.63" (16mm) |
| Length - Shaft and Bearing | 1.16" (29.5mm) |
| Mounting Hole Spacing | 1.949" (49.50mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 300 mOhms |
| Features | Shaft Key Included |
in stock
INR
Lin Engineering
1
1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- MOTORS/ACTUATORS/SOLEENOIDS/DRIVERS
- Lin Engineering 4170-5718X-15P-HP10-ND

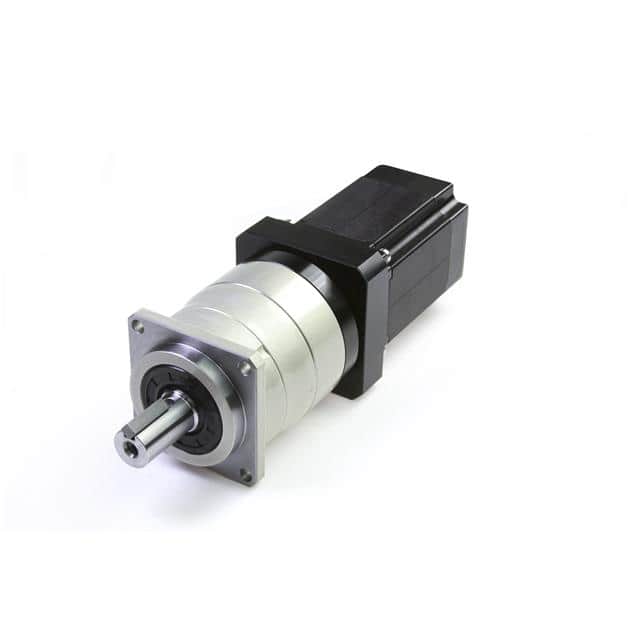

Lin Engineering 4170-5718X-15P-HP10-ND
Sku:
TT-DKEY-4170-5718X-15P-HP10-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
NEMA 23 - 1 STACK STEPPER + 10:1
Product Attributes:
| Series | 5718 |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | - |
| Steps per Revolution | 4000 |
| Step Angle | - |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 1,000 / 7,060 |
| Size / Dimension | Square - 2.25" x 2.25" (57.20mm x 57.20mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.63" (16mm) |
| Length - Shaft and Bearing | 1.16" (29.5mm) |
| Mounting Hole Spacing | 1.949" (49.50mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 300 mOhms |
| Features | Shaft Key Included |
