Lin Engineering 4170-5718M-02P-HP20-ND
Sku: TT-DKEY-4170-5718M-02P-HP20-ND
₹67,361.76
SIZE GUIDE
Sold By: tenettech
Features
- Shipping in 10-12 Working Days
Description of product

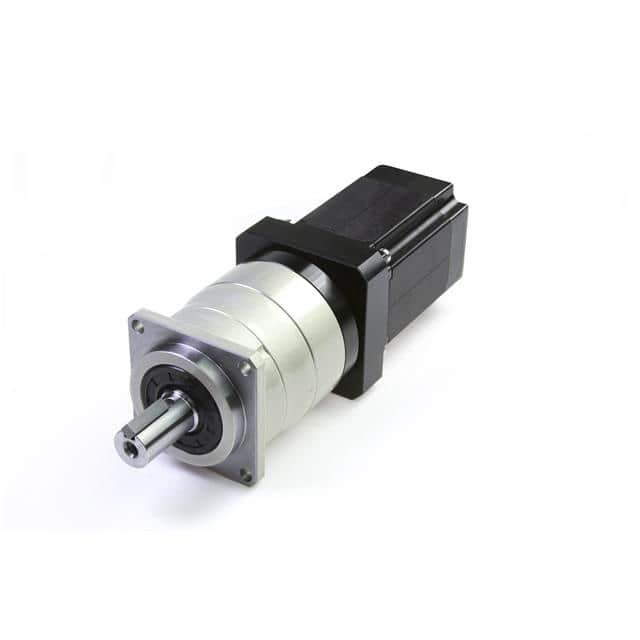

NEMA 23 - 2 STACK STEPPER + 20:1
Product Attributes:
| Series | 5718 |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | - |
| Steps per Revolution | 8000 |
| Step Angle | - |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 3,459 / 24,420 |
| Size / Dimension | Square - 2.25" x 2.25" (57.20mm x 57.20mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.63" (16mm) |
| Length - Shaft and Bearing | 1.16" (29.5mm) |
| Mounting Hole Spacing | 1.949" (49.50mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 500 mOhms |
| Features | Shaft Key Included |
