Description of product

DESCRIPTION

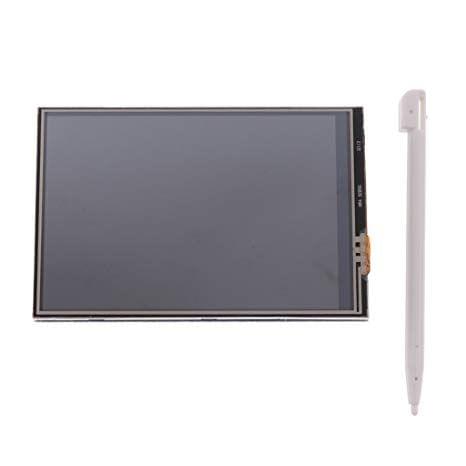

3.5inch Touch LCD Shield for Arduino

Features

  • Resistive touch screen TFT LCD, 3.5inch, 480x320 resolution
  • Standard Arduino interface, compatible with development boards like : Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
  • Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
  • PWM backlight control, allows to adjust the backlight to a comfortable level
  • Micro SD slot, provides an easy way to store photos for displaying
  • Controlled via SPI, only a few Arduino pins are used
  • Comes with STM32 and Arduino examples, convenient for porting

Key Parameters

LCD TypeTFT
LCD InterfaceSPI
LCD ControllerILI9486
Touch Screen TypeResistive
Touch Screen ControllerXPT2046
ColorsRGB, 65K colors
Resolution480x320 (Pixel)
Aspect Ratio8:5
I/O Voltage3.3V/5V

Interface

SymbolArduino / NUCLEO PINDescription
5V5V5V power input
GNDGNDGround
SCLKD13SPI clock
MISOD12SPI data input
MOSID11SPI data output
LCD_CSD10LCD chip select
LCD_BLD9LCD backlight
LCD_RSTD8LCD reset
LCD_DCD7LCD data/command selection
TP_BUSYD6Touch panel busy
SD_CSD5Micro SD card chip select
TP_CSD4Touch panel chip select
TP_IRQD3Touch panel interrupt

External Dimension

3.5inch-TFT-Touch-Shield-dimension
