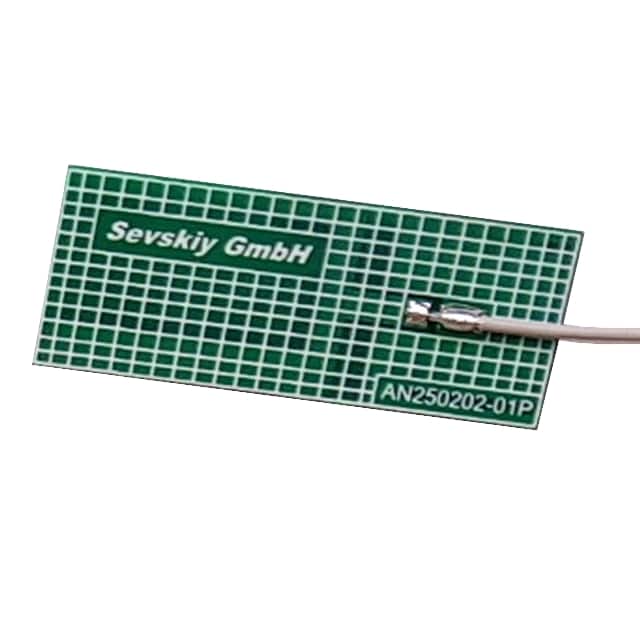

Sevskiy GmbH 3228-AN250202-01P-150-MHF1-ND
https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6129ff95ad57e16d3e683543/mfg_an250202-01p-150-mhf1.jpg
TT-DKEY-3228-AN250202-01P-150-MHF1-ND
RF ANT 2.45GHZ/5.5GHZ/6.5GHZ PCB
Product Attributes:
| Series | AN250202-01P |
| Part Status | Active |
| RF Family/Standard | Bluetooth, General ISM, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.5GHz, 6.5GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 3 |
| VSWR | 2, 2, 2 |
| Return Loss | -10dB, -10dB, -10dB |
| Gain | 1.9dBi, 2.4dBi, 3,1dBi |
| Power - Max | 10 W |
| Features | Cable - 150mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 0.039" (1.00mm) |
| Applications | Bluetooth, ISM, IoT, Wi-Fi, Wi-Fi 6E |
in stock
INR
Sevskiy GmbH
1
1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- RF AND WIRELESS
- Sevskiy GmbH 3228-AN250202-01P-150-MHF1-ND
Sevskiy GmbH 3228-AN250202-01P-150-MHF1-ND
Sku:
TT-DKEY-3228-AN250202-01P-150-MHF1-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
RF ANT 2.45GHZ/5.5GHZ/6.5GHZ PCB
Product Attributes:
| Series | AN250202-01P |
| Part Status | Active |
| RF Family/Standard | Bluetooth, General ISM, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.5GHz, 6.5GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 3 |
| VSWR | 2, 2, 2 |
| Return Loss | -10dB, -10dB, -10dB |
| Gain | 1.9dBi, 2.4dBi, 3,1dBi |
| Power - Max | 10 W |
| Features | Cable - 150mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 0.039" (1.00mm) |
| Applications | Bluetooth, ISM, IoT, Wi-Fi, Wi-Fi 6E |
