6129ffa7899d4e2aa113d02a Sevskiy GmbH 3228-AN150201-01H-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6129ffa9899d4e2aa113d09e/mfg_an150201-01h.jpg

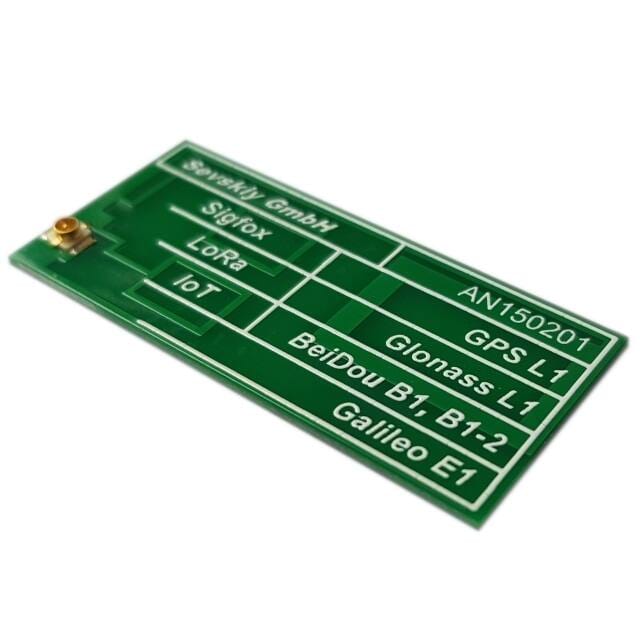

RF ANT 915MHZ/1575MHZ/2GHZ PCB

Product Attributes:

Series AN150201
Part Status Active
RF Family/Standard Cellular, General ISM
Frequency Group UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 868MHz, 915MHz, 1.575GHz, 2GHz
Frequency Range 860MHz ~ 925MHz, 1.559GHz ~ 1.61GHz, 1.9GHz ~ 2.2GHz
Antenna Type PCB Trace
Number of Bands 3
VSWR 3, 3, 3
Return Loss -6dB, -6dB, -6dB
Gain 1.2dBi, 1.4dBi, 1.1dBi
Power - Max 10 W
Features -
Termination U.FL (UMCC), IPEX MHF1
Ingress Protection -
Mounting Type Connector Mount
Height (Max) 0.039" (1.00mm)
Applications 2G, 3G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, NB-IoT, UMTS
TT-DKEY-3228-AN150201-01H-ND
in stock INR
Sevskiy GmbH
1 1
Sevskiy GmbH 3228-AN150201-01H-ND

Sevskiy GmbH 3228-AN150201-01H-ND

Sku: TT-DKEY-3228-AN150201-01H-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

RF ANT 915MHZ/1575MHZ/2GHZ PCB

Product Attributes:

Series AN150201
Part Status Active
RF Family/Standard Cellular, General ISM
Frequency Group UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 868MHz, 915MHz, 1.575GHz, 2GHz
Frequency Range 860MHz ~ 925MHz, 1.559GHz ~ 1.61GHz, 1.9GHz ~ 2.2GHz
Antenna Type PCB Trace
Number of Bands 3
VSWR 3, 3, 3
Return Loss -6dB, -6dB, -6dB
Gain 1.2dBi, 1.4dBi, 1.1dBi
Power - Max 10 W
Features -
Termination U.FL (UMCC), IPEX MHF1
Ingress Protection -
Mounting Type Connector Mount
Height (Max) 0.039" (1.00mm)
Applications 2G, 3G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, NB-IoT, UMTS
