Description of product

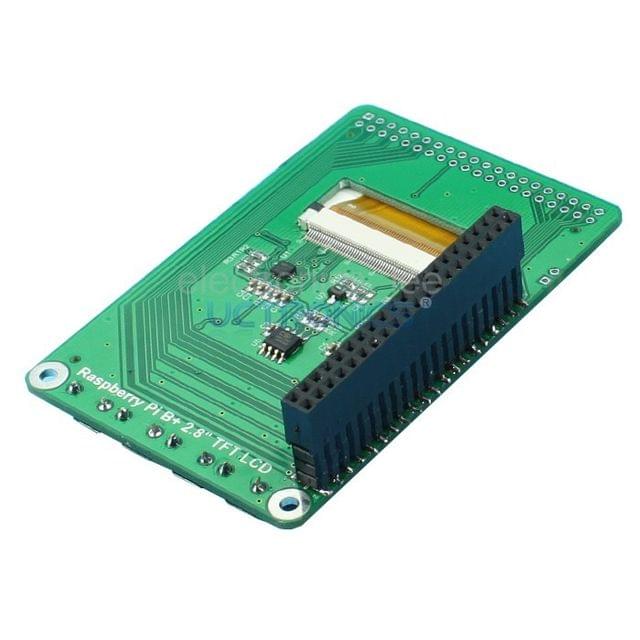

The 2.8 inch TFT LCD module is a special design for Raspberry Pi for portable application. It features a 2.8” display with 320x240 16bit color pixels and resistive touch screen. The LCD is well mated with Pi board and interface with Pi via the high speed SPI port, and support console, X windows, displaying images or video etc. It also provides 4 press buttons for user defined functions.


  • 2.8” inch TFT LCD screen?
  • Resistive touch panel
  • 4 user defined press buttons
  • Well mate with Raspberry Pi Model B+ board
  • FBTFT graphic library support
  • Both command console and X window support


  • 2.8” inch TFT LCD screen
  • Resolution 320 x 240, RGB565 format
  • SPI LCD data bus
  • LCD controller ILI9341
  • Touch panel controller STMPE610

Package Including:

  • 1PCS 320X240 2.8" TFT LCD expansion display + touchscreen for Raspberry Pi B+ Board
