Description:

The L3G4200D is a low-power three-axis angular rate sensor able to provide unprecedented stability of zero rate level and sensitivity over temperature and time. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a digital interface (I2C/SPI).

The L3G4200D has a full scale of ±250/±500/±2000 DPS and is capable of measuring rates with a user-selectable bandwidth.

Features:

• Operating voltage: 3V-5V
• Three selectable full scales (250/500/2000dps)
• I2C/SPI digital output interface
• 16 bit-rate value data output
• 8-bit temperature data output
• Two digital output lines (interrupt and data ready)
• Integrated low- and high-pass filters with user-selectable bandwidth
• Ultra-stable over temperature and time
• Low voltage-compatible IOs (1.8 V)
• Embedded power-down and sleep mode
• Embedded temperature sensor
• Embedded FIFO
• High shock survivability
• Extended operating temperature range (-40°C to +85 °C)

Package List:

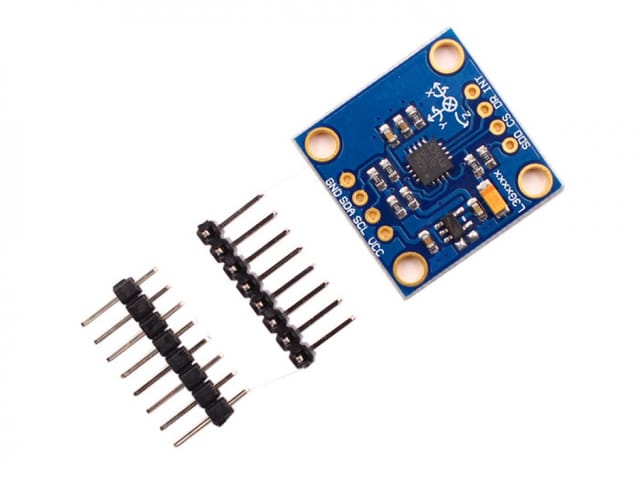

• 1 x 3 Axis Gyro-L3G4200D/span>

Documents:

• Demo Code
• Datasheet
