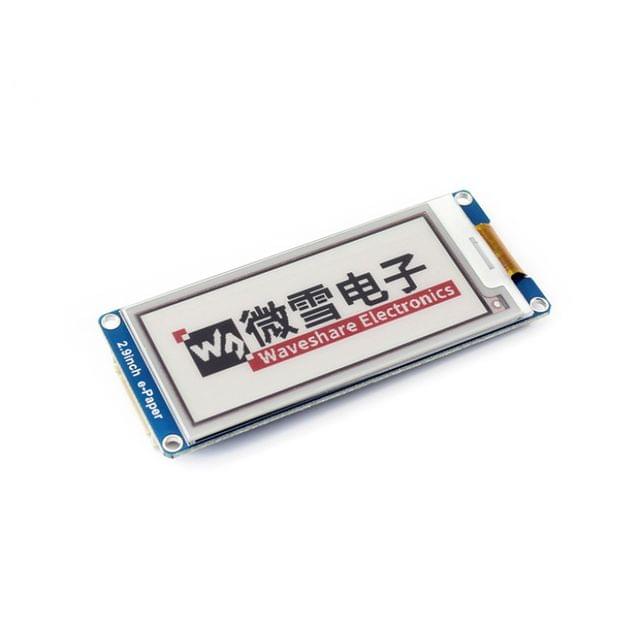

5b1e24565b1b9009fe427366 296x128, 2.9inch E-Ink raw display panel, three-color https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1e24565b1b9009fe427366/images/5e3bb0312b309e782c8141f5/5e3bb028d0b739787e7be6d8/5e3bb028d0b739787e7be6d8.jpg

Overview

This is an E-Ink raw display, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 36.7mm × 79.0mm × 1.05mm
  • Display size: 66.89mm × 29.05mm
  • Dot pitch: 0.138 × 0.138
  • Resolution: 296 × 128
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 15s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
 TT-WS-13276
in stock INR
WAVESHARE
1 1
296x128, 2.9inch E-Ink raw display panel, three-color

296x128, 2.9inch E-Ink raw display panel, three-color

Sku: TT-WS-13276
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1e24565b1b9009fe427366/images/5e3bb0312b309e782c8141f5/5e3bb028d0b739787e7be6d8/5e3bb028d0b739787e7be6d8.jpg

Description of product

Overview

This is an E-Ink raw display, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 36.7mm × 79.0mm × 1.05mm
  • Display size: 66.89mm × 29.05mm
  • Dot pitch: 0.138 × 0.138
  • Resolution: 296 × 128
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 15s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
