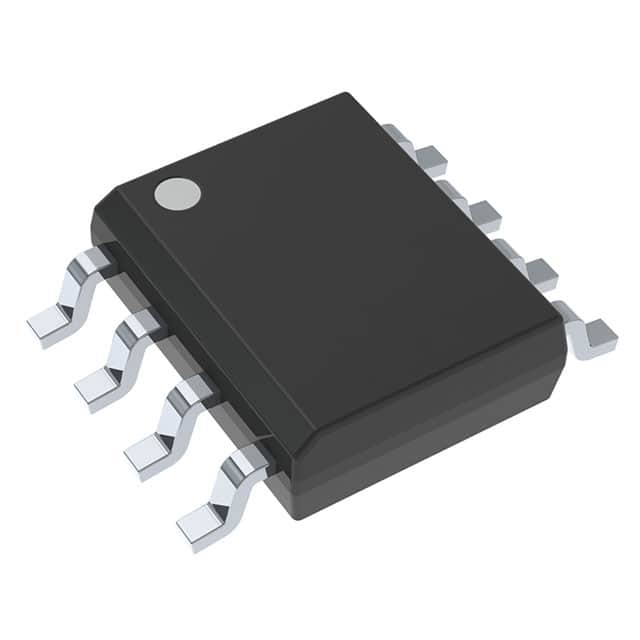

Texas Instruments 296-TMCS1101A4BQDRTR-ND,296-TMCS1101A4BQDRCT-ND,296-TMCS1101A4BQDRDKR-ND
https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/63fdfb560eaa135b2c2a5b9b/296-4221445-d-8.jpg
TT-DKEY-296-TMCS1101A4BQDRTR-ND,296-TMCS1101A4BQDRCT-ND,296-TMCS1101A4BQDRDKR-ND
PRECISION ISOLATED CURRENT SENSO
Product Attributes:
| Series | - |
| Product Status | Active |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect |
| Current - Sensing | ±5.75A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 400mV/A |
| Frequency | 80kHz |
| Linearity | ±0.05% |
| Accuracy | ±0.5% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 6.5µs |
| Current - Supply (Max) | 6mA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
in stock
INR
Texas Instruments
1
1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- Texas Instruments 296-TMCS1101A4BQDRTR-ND,296-TMCS1101A4BQDRCT-ND,296-TMCS1101A4BQDRDKR-ND
Texas Instruments 296-TMCS1101A4BQDRTR-ND,296-TMCS1101A4BQDRCT-ND,296-TMCS1101A4BQDRDKR-ND
Sku:
TT-DKEY-296-TMCS1101A4BQDRTR-ND,296-TMCS1101A4BQDRCT-ND,296-TMCS1101A4BQDRDKR-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
PRECISION ISOLATED CURRENT SENSO
Product Attributes:
| Series | - |
| Product Status | Active |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect |
| Current - Sensing | ±5.75A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 400mV/A |
| Frequency | 80kHz |
| Linearity | ±0.05% |
| Accuracy | ±0.5% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 6.5µs |
| Current - Supply (Max) | 6mA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
