66261ce1e678e5959f7e81b5 Texas Instruments 296-38560-2-ND,296-38560-1-ND,296-38560-6-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66261ce3e678e5959f7e81c6/36-vqfn-exposed-pad-rhh.jpg

IC RF TXRX+MCU ISM<1GHZ 36-VFQFN

Product Attributes:

Series -
Product Status Active
Type TxRx + MCU
RF Family/Standard General ISM < 1GHz
Protocol -
Modulation 2FSK, ASK, GFSK, MSK, OOK
Frequency 300MHz ~ 348MHz, 391MHz ~ 464MHz, 782MHz ~ 928MHz
Data Rate (Max) 500kBaud
Power - Output 10dBm
Sensitivity -112dBm
Memory Size 32kB Flash, 4kB SRAM
Serial Interfaces I2S, USART
GPIO 21
Voltage - Supply 2V ~ 3.6V
Current - Receiving 16.2mA ~ 21.5mA
Current - Transmitting 18mA ~ 36.2mA
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount

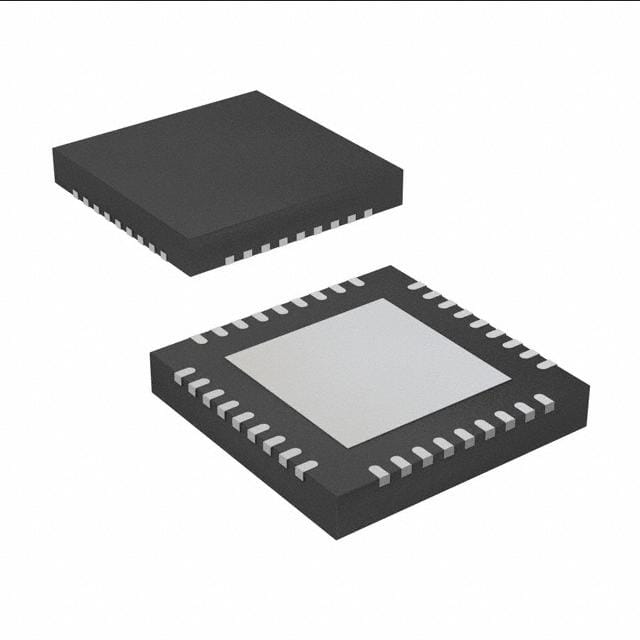

Package / Case 36-VFQFN Exposed Pad
Supplier Device Package 36-VQFN (6x6)
DigiKey Programmable Not Verified
Grade -
Qualification -
TT-DKEY-296-38560-2-ND,296-38560-1-ND,296-38560-6-ND
in stock INR
Texas Instruments
1 1
Texas Instruments 296-38560-2-ND,296-38560-1-ND,296-38560-6-ND

Texas Instruments 296-38560-2-ND,296-38560-1-ND,296-38560-6-ND

Sku: TT-DKEY-296-38560-2-ND,296-38560-1-ND,296-38560-6-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

IC RF TXRX+MCU ISM<1GHZ 36-VFQFN

Product Attributes:

Series -
Product Status Active
Type TxRx + MCU
RF Family/Standard General ISM < 1GHz
Protocol -
Modulation 2FSK, ASK, GFSK, MSK, OOK
Frequency 300MHz ~ 348MHz, 391MHz ~ 464MHz, 782MHz ~ 928MHz
Data Rate (Max) 500kBaud
Power - Output 10dBm
Sensitivity -112dBm
Memory Size 32kB Flash, 4kB SRAM
Serial Interfaces I2S, USART
GPIO 21
Voltage - Supply 2V ~ 3.6V
Current - Receiving 16.2mA ~ 21.5mA
Current - Transmitting 18mA ~ 36.2mA
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 36-VFQFN Exposed Pad
Supplier Device Package 36-VQFN (6x6)
DigiKey Programmable Not Verified
Grade -
Qualification -
