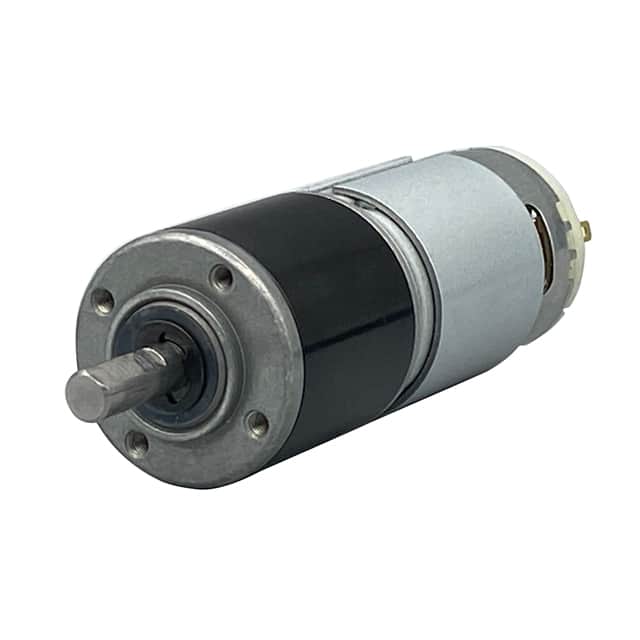

30MM PLANETARY GEAR MOTOR - BRUS

Product Attributes:

Series-
Product StatusActive
TypeDC Motor
FunctionGearmotor
Motor TypeBrushed
Voltage - Rated12VDC
RPM310 RPM
Torque - Rated (oz-in / mNm)20.8 / 147.1
Power - Rated7W
Encoder Type-
Size / DimensionRound - 1.181" Dia (30.00mm)
Diameter - Shaft0.591" (15.00mm)
Length - Shaft and Bearing3.016" (76.60mm)
Mounting Hole Spacing0.630" (16.00mm)
Termination StyleQuick Connect
Features-
Gear Reduction Ratio19
Torque - Max Momentary (oz-in / mNm)76.38 / 539.4
Operating Temperature-
TT-DKEY-2685-MOT-IG30GM-1:19-ND
in stockINR 17318.925
ISL Products International
1 1
ISL Products International 2685-MOT-IG30GM-1:19-ND

ISL Products International 2685-MOT-IG30GM-1:19-ND

Sku: TT-DKEY-2685-MOT-IG30GM-1:19-ND
₹17,318.93


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

30MM PLANETARY GEAR MOTOR - BRUS

Product Attributes:

Series-
Product StatusActive
TypeDC Motor
FunctionGearmotor
Motor TypeBrushed
Voltage - Rated12VDC
RPM310 RPM
Torque - Rated (oz-in / mNm)20.8 / 147.1
Power - Rated7W
Encoder Type-
Size / DimensionRound - 1.181" Dia (30.00mm)
Diameter - Shaft0.591" (15.00mm)
Length - Shaft and Bearing3.016" (76.60mm)
Mounting Hole Spacing0.630" (16.00mm)
Termination StyleQuick Connect
Features-
Gear Reduction Ratio19
Torque - Max Momentary (oz-in / mNm)76.38 / 539.4
Operating Temperature-
