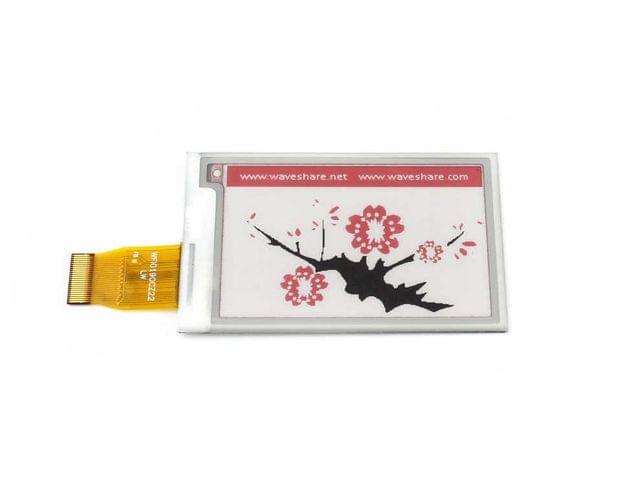

5b1e22fc5b1b9009fe4266c0 264x176, 2.7inch E-Ink raw display, three-color https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1e22fc5b1b9009fe4266c0/images/5e3baeef6fbdfb783176b2f7/5e3baeea9463c841cbcfd7e5/webp/5e3baeea9463c841cbcfd7e5.jpg

Overview

This is an E-Ink raw display, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 70.42mm × 45.8mm × 0.98mm
  • Display size: 57.288mm × 38.192mm
  • Dot pitch: 0.217 × 0.217
  • Resolution: 264 × 176
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 15s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
TT-WS-13185
in stockINR 1231
