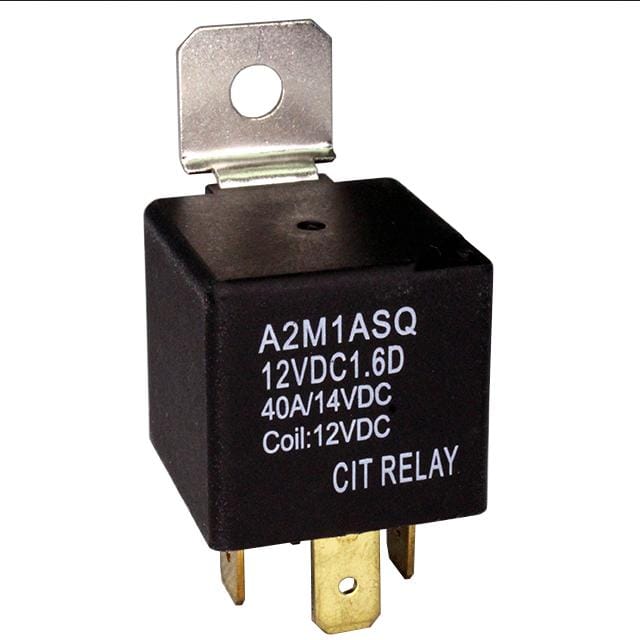

6138540ad36365757daa30e3 CIT Relay and Switch 2449-A2M1ASQ12VDC1.6D-ND https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/6138540bd36365757daa311e/webp/mfg_a2m1asq12vdc16d.jpg

RELAY AUTO BRACKET SPST 12VDC QC

Product Attributes:

SeriesA2
Part StatusActive
Coil TypeNon Latching
Coil Current133.3 mA
Coil Voltage12VDC
Contact FormSPST-NO (1 Form A)
Contact Rating (Current)40 A
Switching Voltage75VDC - Max
Must Operate Voltage8.4 VDC
Must Release Voltage1.2 VDC
Operate Time7 ms
Release Time5 ms
FeaturesDiode, Sealed - Fully
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.250" (6.3mm)
Operating Temperature-40°C ~ 125°C
TT-DKEY-2449-A2M1ASQ12VDC1.6D-ND
in stockINR 228.253
CIT Relay and Switch
1 1
CIT Relay and Switch 2449-A2M1ASQ12VDC1.6D-ND

CIT Relay and Switch 2449-A2M1ASQ12VDC1.6D-ND

Sku: TT-DKEY-2449-A2M1ASQ12VDC1.6D-ND
₹228.25


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

RELAY AUTO BRACKET SPST 12VDC QC

Product Attributes:

SeriesA2
Part StatusActive
Coil TypeNon Latching
Coil Current133.3 mA
Coil Voltage12VDC
Contact FormSPST-NO (1 Form A)
Contact Rating (Current)40 A
Switching Voltage75VDC - Max
Must Operate Voltage8.4 VDC
Must Release Voltage1.2 VDC
Operate Time7 ms
Release Time5 ms
FeaturesDiode, Sealed - Fully
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.250" (6.3mm)
Operating Temperature-40°C ~ 125°C
