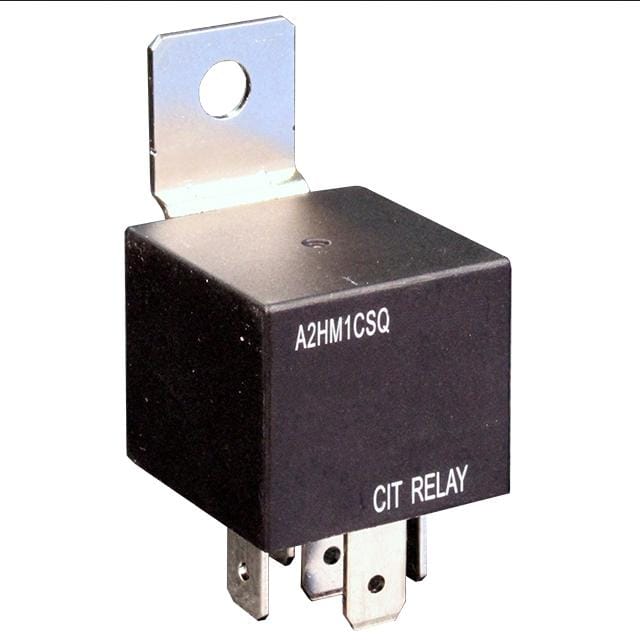

6138542e0be9ec205f6f90b3 CIT Relay and Switch 2449-A2HM1CSQ24VDC1.6-ND https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/6138542f0be9ec205f6f90dc/webp/mfg_a2hm1csq24vdc16.jpg

RELAY BRACKET QC SPDT SEALED 50A

Product Attributes:

SeriesA2
Part StatusActive
Coil TypeNon Latching
Coil Current66.7 mA
Coil Voltage24VDC
Contact FormSPDT (1 Form C)
Contact Rating (Current)50 A
Switching Voltage75VDC - Max
Must Operate Voltage15.6 VDC
Must Release Voltage2.4 VDC
Operate Time10 ms
Release Time10 ms
FeaturesSealed - Fully
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.250" (6.3mm)
Operating Temperature-40°C ~ 125°C
TT-DKEY-2449-A2HM1CSQ24VDC1.6-ND
in stockINR 272.986
CIT Relay and Switch
1 1

CIT Relay and Switch 2449-A2HM1CSQ24VDC1.6-ND

Sku: TT-DKEY-2449-A2HM1CSQ24VDC1.6-ND
₹272.99


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

RELAY BRACKET QC SPDT SEALED 50A

Product Attributes:

SeriesA2
Part StatusActive
Coil TypeNon Latching
Coil Current66.7 mA
Coil Voltage24VDC
Contact FormSPDT (1 Form C)
Contact Rating (Current)50 A
Switching Voltage75VDC - Max
Must Operate Voltage15.6 VDC
Must Release Voltage2.4 VDC
Operate Time10 ms
Release Time10 ms
FeaturesSealed - Fully
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.250" (6.3mm)
Operating Temperature-40°C ~ 125°C
