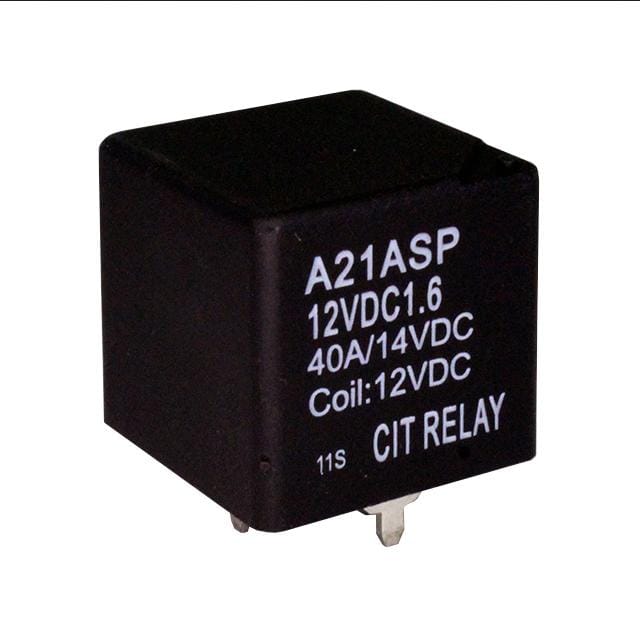

66f29bc7028e3100361c1b89 CIT Relay and Switch 2449-A21ASP12VDC1.6R-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66f29bc8028e3100361c1b8c/mfg_a21asp12vdc16r.jpg

RELAY AUTOMOTIVE SPST 40A 12V

Product Attributes:

SeriesA2
Product StatusActive
Coil TypeNon Latching
Coil Current133.3 mA
Coil Voltage12VDC
Contact FormSPST-NO (1 Form A)
Contact Rating (Current)40 A
Switching Voltage75VDC - Max
Must Operate Voltage8.4 VDC
Must Release Voltage1.2 VDC
Operate Time7 ms
Release Time5 ms
FeaturesResistor, Sealed - Fully
Mounting TypeThrough Hole
Termination StylePC Pin
Operating Temperature-40°C ~ 125°C
TT-DKEY-2449-A21ASP12VDC1.6R-ND
in stockINR 218.88
CIT Relay and Switch
1 1
CIT Relay and Switch 2449-A21ASP12VDC1.6R-ND

CIT Relay and Switch 2449-A21ASP12VDC1.6R-ND

Sku: TT-DKEY-2449-A21ASP12VDC1.6R-ND
₹218.88


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

RELAY AUTOMOTIVE SPST 40A 12V

Product Attributes:

SeriesA2
Product StatusActive
Coil TypeNon Latching
Coil Current133.3 mA
Coil Voltage12VDC
Contact FormSPST-NO (1 Form A)
Contact Rating (Current)40 A
Switching Voltage75VDC - Max
Must Operate Voltage8.4 VDC
Must Release Voltage1.2 VDC
Operate Time7 ms
Release Time5 ms
FeaturesResistor, Sealed - Fully
Mounting TypeThrough Hole
Termination StylePC Pin
Operating Temperature-40°C ~ 125°C
