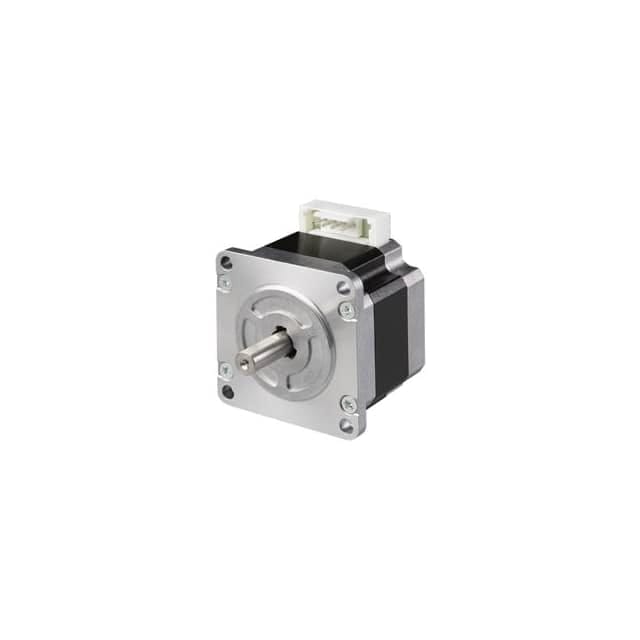

Sanyo Denki SanMotion Products 2300-SM2564C20B41P-ND
https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405cbd5bc377edb5e568312/mfg_sm256xcx0b41pseries.jpg
TT-DKEY-2300-SM2564C20B41P-ND
F2, 56 SQ., 1.8, BIPOLAR/SINGLE
Product Attributes:
| Series | SM |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 354 / 2500 |
| Size / Dimension | Square - 2.205" x 2.205" (56.00mm x 56.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.811" (20.60mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Connector |
| Operating Temperature | - |
| Coil Resistance | 2.1 Ohms |
| Features | - |
in stock
INR
Sanyo Denki SanMotion Products
1
1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- MOTORS/ACTUATORS/SOLEENOIDS/DRIVERS
- Sanyo Denki SanMotion Products 2300-SM2564C20B41P-ND
Sanyo Denki SanMotion Products 2300-SM2564C20B41P-ND
Sku:
TT-DKEY-2300-SM2564C20B41P-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
F2, 56 SQ., 1.8, BIPOLAR/SINGLE
Product Attributes:
| Series | SM |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 354 / 2500 |
| Size / Dimension | Square - 2.205" x 2.205" (56.00mm x 56.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.811" (20.60mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Connector |
| Operating Temperature | - |
| Coil Resistance | 2.1 Ohms |
| Features | - |
