Sanyo Denki SanMotion Products 2300-SH2145-5641P-ND
https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405cc1b04a16ce8920110bb/mfg_sh2145-5611p.jpg
TT-DKEY-2300-SH2145-5641P-ND
STEP, F2, SQ.14, 1.8, , , BIPOLA
Product Attributes:
| Series | SH |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 400 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 1.42 / 10 |
| Size / Dimension | Square - 0.551" x 0.551" (14.00mm x 14.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.157" (4.00mm) |
| Length - Shaft and Bearing | 0.591" (15.00mm) |
| Mounting Hole Spacing | 0.453" (11.50mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 19 Ohms |
| Features | - |
in stock
INR
Sanyo Denki SanMotion Products
1
1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- MOTORS/ACTUATORS/SOLEENOIDS/DRIVERS
- Sanyo Denki SanMotion Products 2300-SH2145-5641P-ND

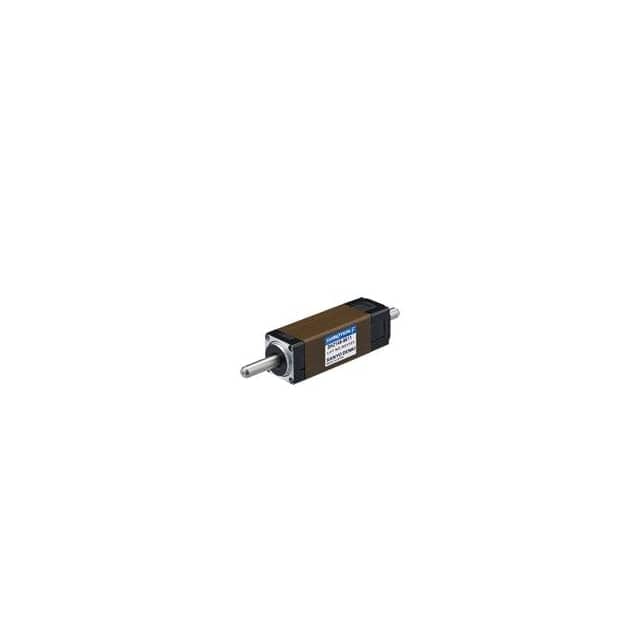

Sanyo Denki SanMotion Products 2300-SH2145-5641P-ND
Sku:
TT-DKEY-2300-SH2145-5641P-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
STEP, F2, SQ.14, 1.8, , , BIPOLA
Product Attributes:
| Series | SH |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 400 mA |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 1.42 / 10 |
| Size / Dimension | Square - 0.551" x 0.551" (14.00mm x 14.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.157" (4.00mm) |
| Length - Shaft and Bearing | 0.591" (15.00mm) |
| Mounting Hole Spacing | 0.453" (11.50mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 19 Ohms |
| Features | - |
