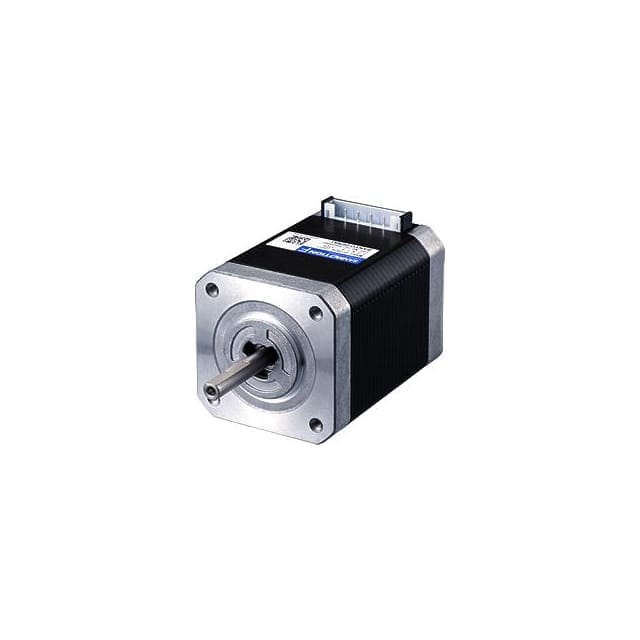

6123488e50a7d16b6863e4df Sanyo Denki SanMotion Products 2300-SF2424-10B11-ND //cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/6123489050a7d16b6863e511/webp/mfg_sf2424-10b11.jpg

STEP, F2, SQ.42, 1.8, , , BIPOLA

Product Attributes:

Series SF
Part Status Active
Type Hybrid, Dual Shaft
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 1 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 113.30 / 800
Size / Dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size -
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Connector
Operating Temperature -10°C ~ 50°C
Coil Resistance 6.5 Ohms
Features -
TT-DKEY-2300-SF2424-10B11-ND
in stock INR 4282.767676
Sanyo Denki SanMotion Products
1 1

Sanyo Denki SanMotion Products 2300-SF2424-10B11-ND

Sku: TT-DKEY-2300-SF2424-10B11-ND
₹4,282.77


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEP, F2, SQ.42, 1.8, , , BIPOLA

Product Attributes:

Series SF
Part Status Active
Type Hybrid, Dual Shaft
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 1 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 113.30 / 800
Size / Dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size -
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Connector
Operating Temperature -10°C ~ 50°C
Coil Resistance 6.5 Ohms
Features -
