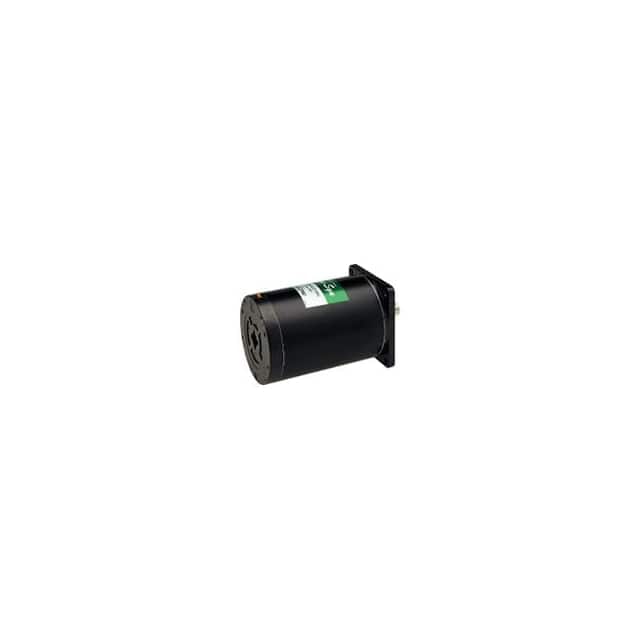

Sanyo Denki SanMotion Products 2300-103H89222-5241-ND
Sku:
TT-DKEY-2300-103H89222-5241-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
STEP, F2, 106, 1.8, , , BIPOLAR/
Product Attributes:
| Series | H |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 100VAC |
| Current Rating (Amps) | 6 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 1869 / 13200 |
| Size / Dimension | Square - 4.173" x 4.173" (106.00mm x 106.00mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.630" (16.00mm) |
| Length - Shaft and Bearing | 1.378" (35.00mm) |
| Mounting Hole Spacing | 3.500" (88.90mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 0.45 Ohms |
| Features | - |
