6405cbc5168bf0db740f9441 Pololu Corporation 2183-1208-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405cbc7168bf0db740f9460/1208.jpg

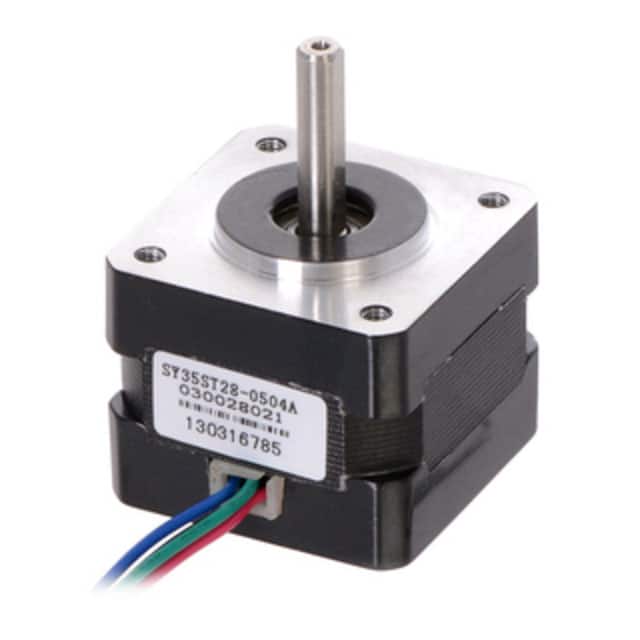

STPR MTR BIPOLAR 10V 0.5A/PHASE

Product Attributes:

Series -
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 10VDC
Current Rating (Amps) 500 mA
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 14 / 98.86
Size / Dimension Square - 1.386" x 1.386" (35.20mm x 35.20mm)
NEMA Frame Size 14
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.827" (21.00mm)
Mounting Hole Spacing 1.023" (26.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 20 Ohms
Features Flatted Shaft
TT-DKEY-2183-1208-ND
in stock INR 2718.855
Pololu Corporation
1 1

Pololu Corporation 2183-1208-ND

Sku: TT-DKEY-2183-1208-ND
₹2,718.86


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STPR MTR BIPOLAR 10V 0.5A/PHASE

Product Attributes:

Series -
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 10VDC
Current Rating (Amps) 500 mA
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 14 / 98.86
Size / Dimension Square - 1.386" x 1.386" (35.20mm x 35.20mm)
NEMA Frame Size 14
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.827" (21.00mm)
Mounting Hole Spacing 1.023" (26.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 20 Ohms
Features Flatted Shaft
