6129cbd08d52597e088cf66e Analog Devices Inc. 2156-ADL5531ACPZ-R7-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6129cbd28d52597e088cf6e3/505-cp-8-2-cp-8.jpg

20 MHZ TO 500 MHZ IF GAIN BLOCK

Product Attributes:

Series -
Part Status Active
Frequency 20MHz ~ 500MHz
P1dB 20.4dBm
Gain 19.2dB ~ 20.5dB
Noise Figure 3dB
RF Type W-CDMA, CDMA, GSM, UMTS
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 100mA ~ 110mA
Test Frequency 380MHz
Mounting Type Surface Mount

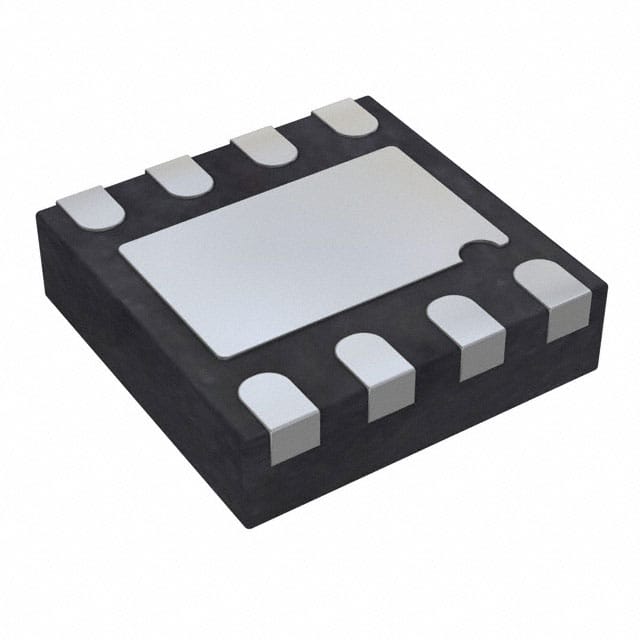

Package / Case 8-VFDFN Exposed Pad, CSP
Supplier Device Package 8-LFCSP-VD (3x3)
TT-DKEY-2156-ADL5531ACPZ-R7-ND
in stock INR
Analog Devices Inc.
1 1
Analog Devices Inc. 2156-ADL5531ACPZ-R7-ND

Analog Devices Inc. 2156-ADL5531ACPZ-R7-ND

Sku: TT-DKEY-2156-ADL5531ACPZ-R7-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

20 MHZ TO 500 MHZ IF GAIN BLOCK

Product Attributes:

Series -
Part Status Active
Frequency 20MHz ~ 500MHz
P1dB 20.4dBm
Gain 19.2dB ~ 20.5dB
Noise Figure 3dB
RF Type W-CDMA, CDMA, GSM, UMTS
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 100mA ~ 110mA
Test Frequency 380MHz
Mounting Type Surface Mount
Package / Case 8-VFDFN Exposed Pad, CSP
Supplier Device Package 8-LFCSP-VD (3x3)
