- Home
- Allegro MicroSystems 2156-ACS770LCB-100B-PFF-T-ND,620-1544-5-ND

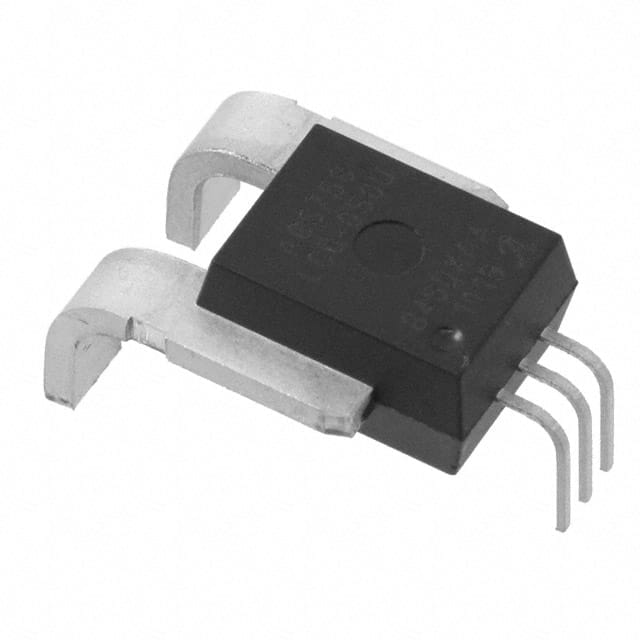

Allegro MicroSystems 2156-ACS770LCB-100B-PFF-T-ND,620-1544-5-ND
Sku:
TT-DKEY-2156-ACS770LCB-100B-PFF-T-ND,620-1544-5-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
SENSOR CURRENT HALL 100A AC/DC
Product Attributes:
| Series | ACS770 |
| Product Status | Active |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 20mV/A |
| Frequency | DC ~ 120kHz |
| Linearity | ±1% |
| Accuracy | ±0.6% |
| Voltage - Supply | 5V |
| Response Time | 4.6µs |
| Current - Supply (Max) | 15mA |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | 5-CB Formed Leads, PFF |
| Supplier Device Package | 5-CB Module |
