6405ccb2e7a979a6319a0cc0 Lin Engineering 2090-WO-4209L-01P-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405ccb3e7a979a6319a0cdb/mfg_4209_flatshaft.jpg

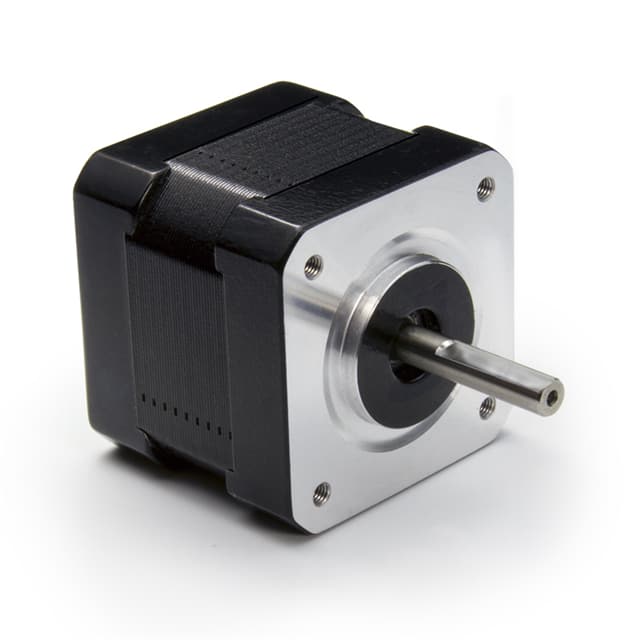

STEPPER MOTOR

Product Attributes:

Series -
Product Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 1.7 A
Steps per Revolution 400
Step Angle 0.9°
Accuracy -
Torque - Holding (oz-in / mNm) 62 / 438
Size / Dimension Square - 1.669" x 1.669" (42.40mm x 42.40mm)
NEMA Frame Size 17
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 1.9 Ohms
Features Round Shaft
TT-DKEY-2090-WO-4209L-01P-ND
in stock INR 9144.224999999999
Lin Engineering
1 1

Lin Engineering 2090-WO-4209L-01P-ND

Sku: TT-DKEY-2090-WO-4209L-01P-ND
₹9,144.22


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR

Product Attributes:

Series -
Product Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 1.7 A
Steps per Revolution 400
Step Angle 0.9°
Accuracy -
Torque - Holding (oz-in / mNm) 62 / 438
Size / Dimension Square - 1.669" x 1.669" (42.40mm x 42.40mm)
NEMA Frame Size 17
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 1.9 Ohms
Features Round Shaft
