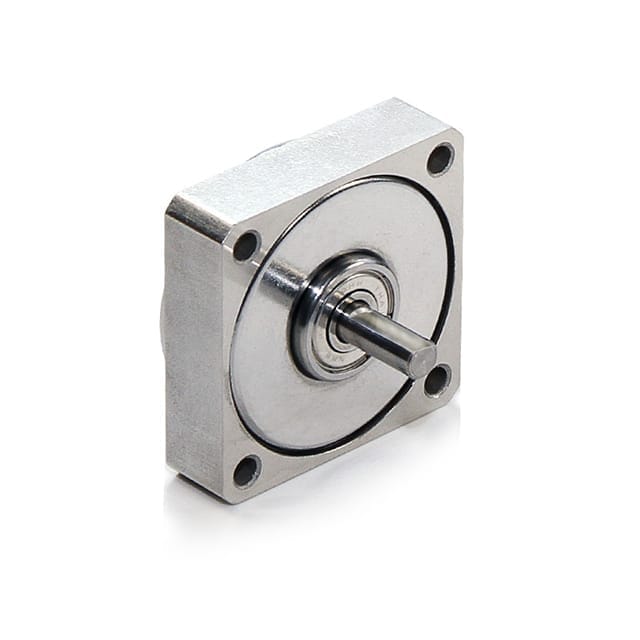

612348e45897566b8b626cd5 Lin Engineering 2090-WO-416-07-05-ND //cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/612348e55897566b8b626cf2/webp/mfg_416_flat_shaft.jpg

STEPPER MOTOR

Product Attributes:

Series -
Part Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 600 mA
Steps per Revolution 400
Step Angle 0.9°
Accuracy -
Torque - Holding (oz-in / mNm) 8.4 / 59.31
Size / Dimension Square - 1.539" L x 1.539" W (39.10mm x 39.10mm)
NEMA Frame Size 17
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.709" (18.00mm)
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 5.4 Ohms
Features Round Shaft
TT-DKEY-2090-WO-416-07-05-ND
in stock INR 6200.917228
Lin Engineering
1 1

Lin Engineering 2090-WO-416-07-05-ND

Sku: TT-DKEY-2090-WO-416-07-05-ND
₹6,200.92


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR

Product Attributes:

Series -
Part Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 600 mA
Steps per Revolution 400
Step Angle 0.9°
Accuracy -
Torque - Holding (oz-in / mNm) 8.4 / 59.31
Size / Dimension Square - 1.539" L x 1.539" W (39.10mm x 39.10mm)
NEMA Frame Size 17
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.709" (18.00mm)
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 5.4 Ohms
Features Round Shaft
