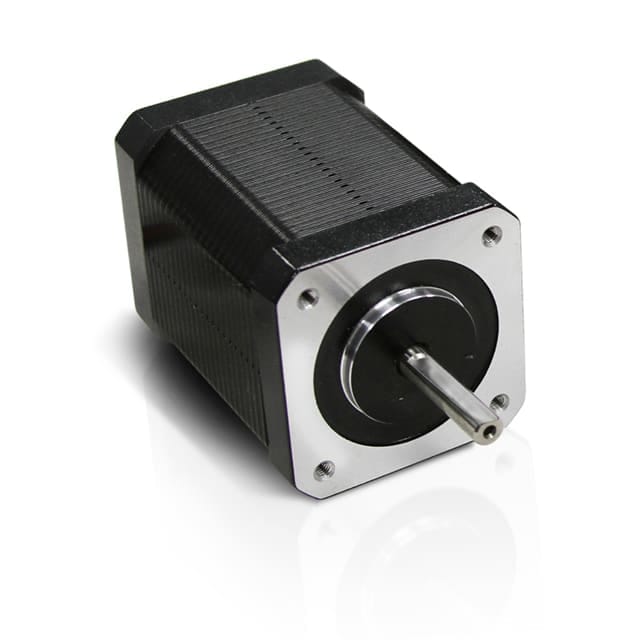

612348e0c9320ab39c5d4c9a Lin Engineering 2090-WO-4118M-06S-ND //cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/612348e1c9320ab39c5d4cfc/webp/mfg_4118_flatshaft.jpg

STEPPER MOTOR

Product Attributes:

Series -
Part Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 700 mA
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 63 / 444.88
Size / Dimension Square - 1.669" x 1.669" (42.40mm x 42.40mm)
NEMA Frame Size 17
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 10.8 Ohms
Features Flatted Shaft
TT-DKEY-2090-WO-4118M-06S-ND
in stock INR 6074.595142
Lin Engineering
1 1

Lin Engineering 2090-WO-4118M-06S-ND

Sku: TT-DKEY-2090-WO-4118M-06S-ND
₹6,074.6


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR

Product Attributes:

Series -
Part Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 700 mA
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 63 / 444.88
Size / Dimension Square - 1.669" x 1.669" (42.40mm x 42.40mm)
NEMA Frame Size 17
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 10.8 Ohms
Features Flatted Shaft
