6405ccabb8fc32a58537d335 Lin Engineering 2090-WO-4118M-06P-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405ccacb8fc32a58537d36c/mfg_4118_flatshaft.jpg

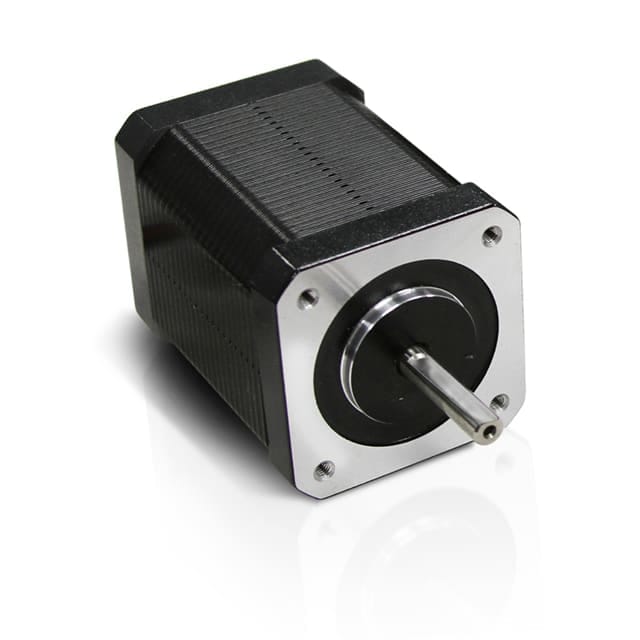

STEPPER MOTOR

Product Attributes:

Series4118
Product StatusActive
Type-
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)1.4 A
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)63 / 444.88
Size / DimensionSquare - 1.669" x 1.669" (42.40mm x 42.40mm)
NEMA Frame Size17
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.220" (31.00mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 50°C
Coil Resistance2.7 Ohms
Features-
TT-DKEY-2090-WO-4118M-06P-ND
in stockINR 6232.860000000001
Lin Engineering
1 1
Lin Engineering 2090-WO-4118M-06P-ND

Lin Engineering 2090-WO-4118M-06P-ND

Sku: TT-DKEY-2090-WO-4118M-06P-ND
₹6,232.86


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR

Product Attributes:

Series4118
Product StatusActive
Type-
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)1.4 A
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)63 / 444.88
Size / DimensionSquare - 1.669" x 1.669" (42.40mm x 42.40mm)
NEMA Frame Size17
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.220" (31.00mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 50°C
Coil Resistance2.7 Ohms
Features-
