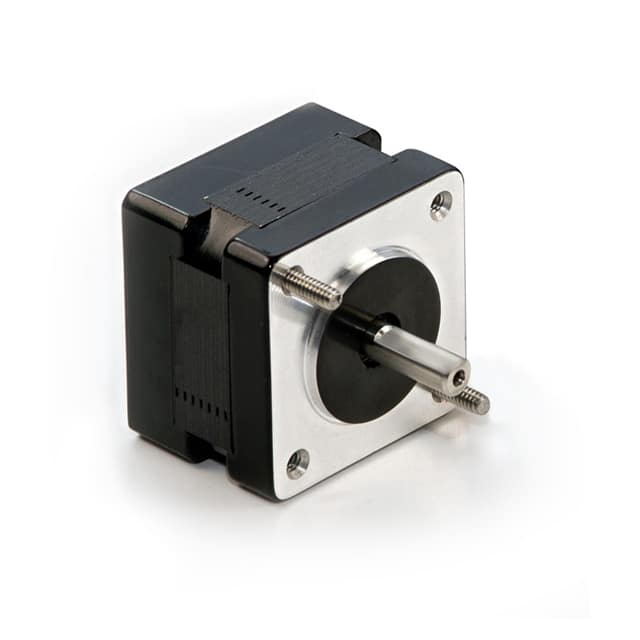

6405cc4a168bf0db740faca0 Lin Engineering 2090-WO-3518X-08-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405cc4b168bf0db740facc8/mfg_3518_flat_shaft.jpg

STEPPER MOTOR

Product Attributes:

Series -
Product Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 350 mA
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 7.5 / 52.96
Size / Dimension Square - 1.390" x 1.390" (35.30mm x 35.30mm)
NEMA Frame Size 14
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.591" (15.00mm)
Mounting Hole Spacing 1.023" (26.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 8.5 Ohms
Features Round Shaft
TT-DKEY-2090-WO-3518X-08-ND
in stock INR 6253.785000000001
Lin Engineering
1 1

Lin Engineering 2090-WO-3518X-08-ND

Sku: TT-DKEY-2090-WO-3518X-08-ND
₹6,253.79


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR

Product Attributes:

Series -
Product Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 350 mA
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 7.5 / 52.96
Size / Dimension Square - 1.390" x 1.390" (35.30mm x 35.30mm)
NEMA Frame Size 14
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.591" (15.00mm)
Mounting Hole Spacing 1.023" (26.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 8.5 Ohms
Features Round Shaft
