6405cbfddd7e60db047df51c Lin Engineering 2090-WO-208-17-01-RO-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405cbfedd7e60db047df54e/mfg_wo-208-17-01.jpg

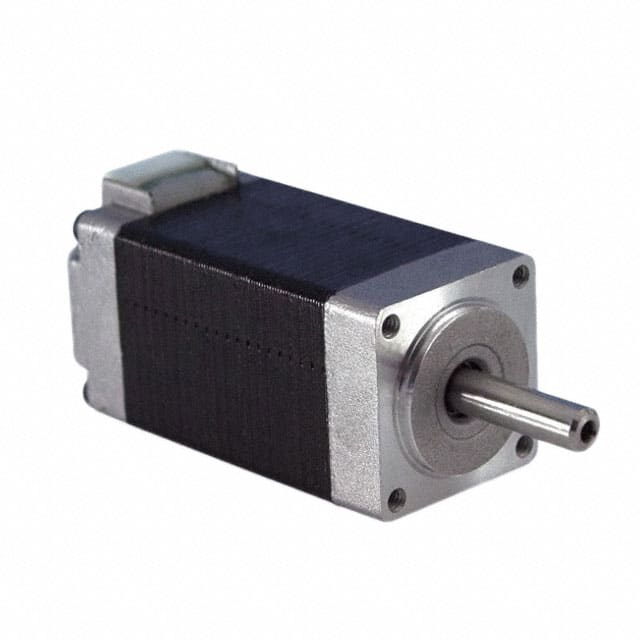

STEPPER MOTOR

Product Attributes:

Series -
Product Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 800 mA
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) -
Size / Dimension Square - 0.799" x 0.799" (20.30mm x 20.30mm)
NEMA Frame Size 8
Diameter - Shaft 0.157" (4.00mm)
Length - Shaft and Bearing 0.591" (15.00mm)
Mounting Hole Spacing 0.630" (16.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 5.4 Ohms
Features Round Shaft
TT-DKEY-2090-WO-208-17-01-RO-ND
in stock INR
Lin Engineering
1 1
Lin Engineering 2090-WO-208-17-01-RO-ND

Lin Engineering 2090-WO-208-17-01-RO-ND

Sku: TT-DKEY-2090-WO-208-17-01-RO-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR

Product Attributes:

Series -
Product Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 800 mA
Steps per Revolution 200
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) -
Size / Dimension Square - 0.799" x 0.799" (20.30mm x 20.30mm)
NEMA Frame Size 8
Diameter - Shaft 0.157" (4.00mm)
Length - Shaft and Bearing 0.591" (15.00mm)
Mounting Hole Spacing 0.630" (16.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 5.4 Ohms
Features Round Shaft
