Delta Electronics/Industrial Automation 2039-ECM-B3M-C20807RS1-ND
https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67add763c0edfc0024eb401d/ecm-b3m-c20807rs1.jpg

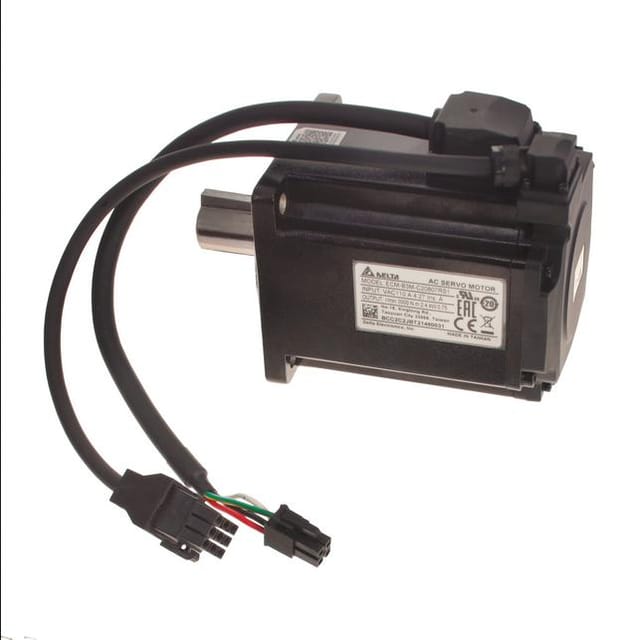

B3 AC SERVO MOTOR 750W NO BRAKE
Product Attributes:
| Series |
ECM-B3 |
| Product Status |
Active |
| Type |
AC Motor |
| Function |
Servomotor |
| Motor Type |
Positional Rotation |
| Voltage - Rated |
220VAC |
| RPM |
3000 RPM |
| Torque - Rated (oz-in / mNm) |
339.9 / 2400 |
| Power - Rated |
750W |
| Encoder Type |
Incremental |
| Size / Dimension |
Square - 3.150" x 3.150" (80.00mm x 80.00mm) |
| Diameter - Shaft |
0.748" (19.00mm) |
| Length - Shaft and Bearing |
1.378" (35.00mm) |
| Mounting Hole Spacing |
3.543" (90.00mm) |
| Termination Style |
Cable with Connector |
| Features |
Key, Oil Seal |
| Gear Reduction Ratio |
- |
| Torque - Max Momentary (oz-in / mNm) |
1189.8 / 8400 |
| Operating Temperature |
-20°C ~ 60°C |
TT-DKEY-2039-ECM-B3M-C20807RS1-ND
in stock
