6405d68290c2cde818d50f42 Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1051-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405d68390c2cde818d50f61/b22-253-m-36.jpg

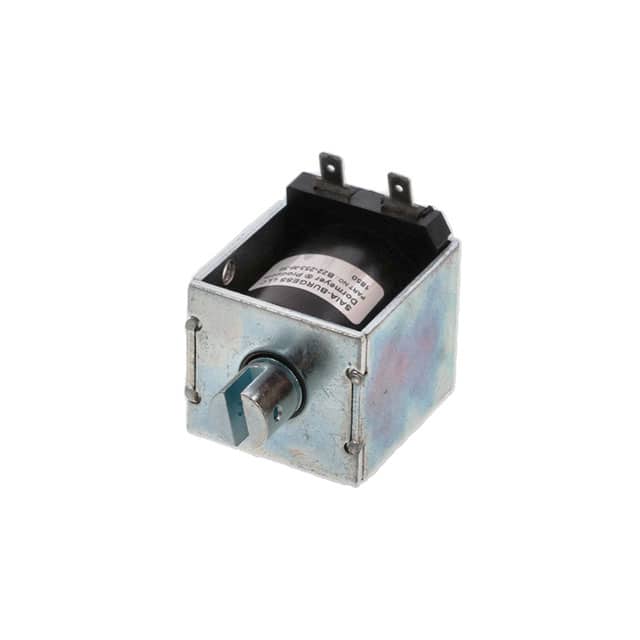

OPEN FRAME SOLENOID B22 - 24 VDC

Product Attributes:

Series-
Product StatusActive
TechnologyElectromechanical
TypeOpen Frame (Pull)
Duty CycleContinuous
Voltage - Rated24VDC
Stroke Length0.500" (12.70mm)
Power (Watts)9.9 W
DC Resistance (DCR)58.2Ohm
Bushing Thread-
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.187" (4.7mm)
Size / Dimension1.610" L x 1.310" W x 1.470" H (40.89mm x 33.27mm x 37.34mm)
Diameter - Shaft0.500" (12.70mm)
Shaft DetailClevis
TT-DKEY-2024-1051-ND
in stockINR 3055.05
Ledex Dormeyer Saia, a Division of Johnson Electric
1 1
Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1051-ND

Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1051-ND

Sku: TT-DKEY-2024-1051-ND
₹3,055.05


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

OPEN FRAME SOLENOID B22 - 24 VDC

Product Attributes:

Series-
Product StatusActive
TechnologyElectromechanical
TypeOpen Frame (Pull)
Duty CycleContinuous
Voltage - Rated24VDC
Stroke Length0.500" (12.70mm)
Power (Watts)9.9 W
DC Resistance (DCR)58.2Ohm
Bushing Thread-
Mounting TypeChassis Mount
Termination StyleQuick Connect - 0.187" (4.7mm)
Size / Dimension1.610" L x 1.310" W x 1.470" H (40.89mm x 33.27mm x 37.34mm)
Diameter - Shaft0.500" (12.70mm)
Shaft DetailClevis
