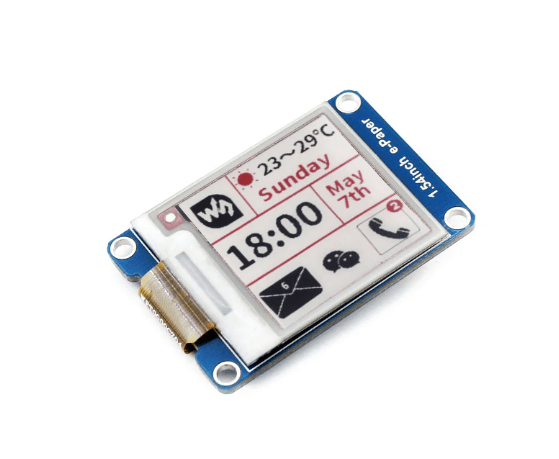

5b1e1c3c6787d20ab157db94 200x200, 1.54inch E-Ink display module, three-color //cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1e1c3c6787d20ab157db94/images/5e3bc29ef3e0992050615a52/5e3bc293bf0b390c52f32a22/5e3bc293bf0b390c52f32a22.PNG

Overview

This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with controller boards like Raspberry Pi/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 48mm × 33mm
  • Display size: 27.6mm × 27.6mm
  • Dot pitch: 0.138 × 0.138
  • Resolution: 200 × 200
  • Display color: red, black, white
  • Grey level: 2
  • Full refresh time: 8s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Interface

SYMBOLDESCRIPTION
VCC3.3V
GNDGround
DINSPI MOSI pin
CLKSPI SCK pin
CSSPI chip selection, low active
DCData/Command selection (high for data, low for command)
RSTExternal reset, low active
BUSYBusy status output, low active

Dimensions

1.54inch e-Paper Module dimensions
TT-WS-13338
in stockINR 2245.54
WAVESHARE
1 1
200x200, 1.54inch E-Ink display module, three-color

200x200, 1.54inch E-Ink display module, three-color

Sku: TT-WS-13338
₹2,245.54


Sold By: tenettech
