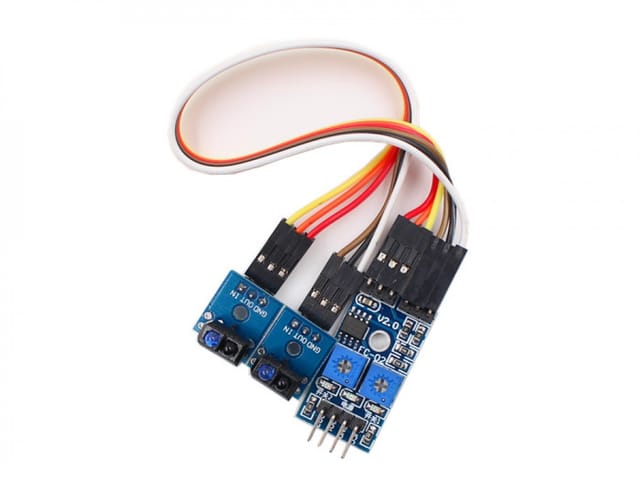

616e9d4e763d8319d2302fdf 2 Channels IR Reflective Sensor (TCRT5000) https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/616e9d42763d8319d2302da6/webp/2-channels-ir-reflective-sensor-tcrt5000-_1.jpg

Description:

The reflectivity of infrared light varies with the color and distance of the reflecting surface. According to this principle, those 2 channels Infrared Reflective Sensor utilizes a TCRT5000 reflective photosensor module to detect color and distance. When a light-colored object approaches, the signal intensity received by the infrared reflective sensor increases and the indicator LED on board turns red. When a dark-colored object approaches, the intensity decreases and the LED turns off.

This sensor is a basic and widely used part in applications such as line-following cars, rotary speed detection, auto data logging on utility meters, or other situations where color or distance contrast is sharp.

Features:

  • Operating voltage: 3.3 V - 5.5 V
  • Digital output: 0 or VCC
  • Detection distance: 1mm ~ 8mm; Focus distance is 2.5mm
  • The small PCB size: 3.2cm x 1.7cm
  • Using the TCRT5000 infrared reflection sensor
  • Using a wide voltage LM393 comparator

Package List:

  • 1 x 2 Channels IR Reflective Sensor (TCRT5000)
  • 8 x Jump Wires
  • 2 x TCRT5000 and Positioning Board

TT-MF-MSE0002IR
in stockINR 304
Makerfabs
1 1
2 Channels IR Reflective Sensor (TCRT5000)

2 Channels IR Reflective Sensor (TCRT5000)

Sku: TT-MF-MSE0002IR
₹304


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

The reflectivity of infrared light varies with the color and distance of the reflecting surface. According to this principle, those 2 channels Infrared Reflective Sensor utilizes a TCRT5000 reflective photosensor module to detect color and distance. When a light-colored object approaches, the signal intensity received by the infrared reflective sensor increases and the indicator LED on board turns red. When a dark-colored object approaches, the intensity decreases and the LED turns off.

This sensor is a basic and widely used part in applications such as line-following cars, rotary speed detection, auto data logging on utility meters, or other situations where color or distance contrast is sharp.

Features:

  • Operating voltage: 3.3 V - 5.5 V
  • Digital output: 0 or VCC
  • Detection distance: 1mm ~ 8mm; Focus distance is 2.5mm
  • The small PCB size: 3.2cm x 1.7cm
  • Using the TCRT5000 infrared reflection sensor
  • Using a wide voltage LM393 comparator

Package List:

  • 1 x 2 Channels IR Reflective Sensor (TCRT5000)
  • 8 x Jump Wires
  • 2 x TCRT5000 and Positioning Board
