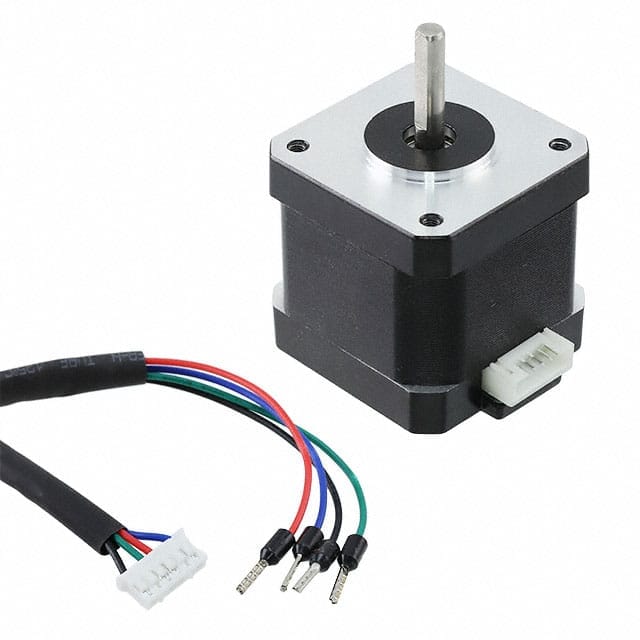

HYBRID STEPPER MOTOR FOR 3D PRIN

Product Attributes:

Series -
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 3.4VDC
Current Rating (Amps) 1.7 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 48.6 / 343.19
Size / Dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size 17
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Connector
Operating Temperature -20°C ~ 50°C
Coil Resistance 2 Ohms
Features Round Shaft
TT-DKEY-1738-1036-ND
in stock INR 1946.0249999999999
DFRobot
1 1
DFRobot 1738-1036-ND

DFRobot 1738-1036-ND

Sku: TT-DKEY-1738-1036-ND
Be the first to review this product
₹1,946.02
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

HYBRID STEPPER MOTOR FOR 3D PRIN

Product Attributes:

Series -
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 3.4VDC
Current Rating (Amps) 1.7 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 48.6 / 343.19
Size / Dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size 17
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Connector
Operating Temperature -20°C ~ 50°C
Coil Resistance 2 Ohms
Features Round Shaft
