612a0358cda2ec2aee5f012f TE Connectivity AMP Connectors 17-2344657-8-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/612a0359cda2ec2aee5f0185/2344657-8.jpg

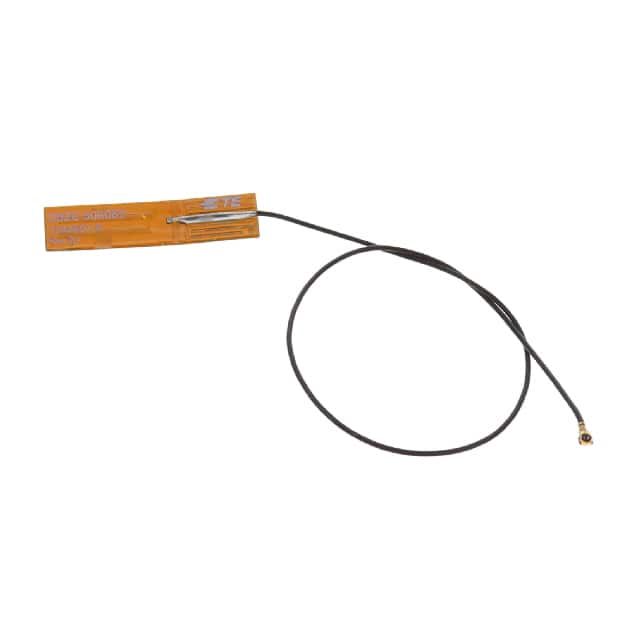

WLAN DUAL BAND ANTENNA FPC H 200

Product Attributes:

Series -
Part Status Active
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.45GHz, 5.5125GHz
Frequency Range 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz
Antenna Type PCB Trace
Number of Bands 2
VSWR 2
Return Loss -
Gain 5dBi
Power - Max -
Features Cable - 200mm
Termination U.FL (UMCC), IPEX MHF4
Ingress Protection -
Mounting Type Adhesive
Height (Max) 0.007" (0.19mm)
Applications Bluetooth, WLAN, Zigbee™
TT-DKEY-17-2344657-8-ND
in stock INR
TE Connectivity AMP Connectors
1 1
TE Connectivity AMP Connectors 17-2344657-8-ND

TE Connectivity AMP Connectors 17-2344657-8-ND

Sku: TT-DKEY-17-2344657-8-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

WLAN DUAL BAND ANTENNA FPC H 200

Product Attributes:

Series -
Part Status Active
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.45GHz, 5.5125GHz
Frequency Range 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz
Antenna Type PCB Trace
Number of Bands 2
VSWR 2
Return Loss -
Gain 5dBi
Power - Max -
Features Cable - 200mm
Termination U.FL (UMCC), IPEX MHF4
Ingress Protection -
Mounting Type Adhesive
Height (Max) 0.007" (0.19mm)
Applications Bluetooth, WLAN, Zigbee™
