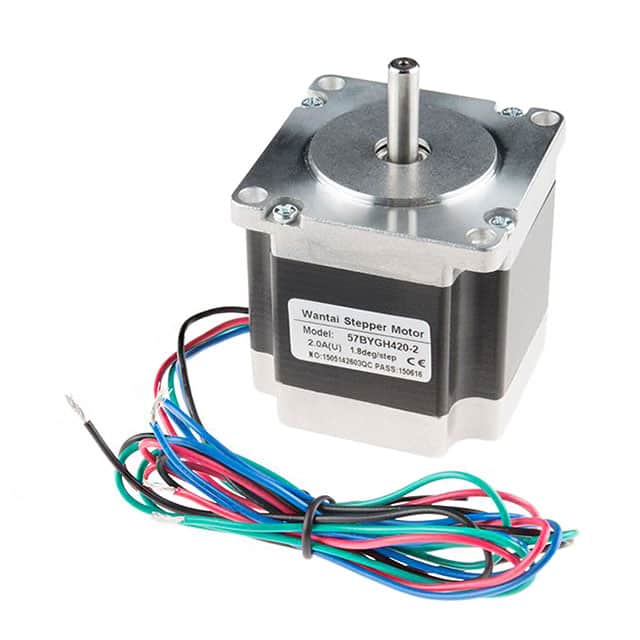

STEP MOTOR HYBRID BIPOLAR 3.2V

Product Attributes:

Series -
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 3.2VDC
Current Rating (Amps) 2 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 125 / 882.7
Size / Dimension Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size 23
Diameter - Shaft 0.250" (6.35mm)
Length - Shaft and Bearing 0.827" (21.00mm)
Mounting Hole Spacing 1.856" (47.14mm)
Termination Style Wire Leads
Operating Temperature -
Coil Resistance 1.6 Ohms
Features Round Shaft
TT-DKEY-1568-1376-ND
in stock INR
SparkFun Electronics
1 1
SparkFun Electronics 1568-1376-ND

SparkFun Electronics 1568-1376-ND

Sku: TT-DKEY-1568-1376-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEP MOTOR HYBRID BIPOLAR 3.2V

Product Attributes:

Series -
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 3.2VDC
Current Rating (Amps) 2 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 125 / 882.7
Size / Dimension Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size 23
Diameter - Shaft 0.250" (6.35mm)
Length - Shaft and Bearing 0.827" (21.00mm)
Mounting Hole Spacing 1.856" (47.14mm)
Termination Style Wire Leads
Operating Temperature -
Coil Resistance 1.6 Ohms
Features Round Shaft
