TT-DKEY-1460-1268-ND

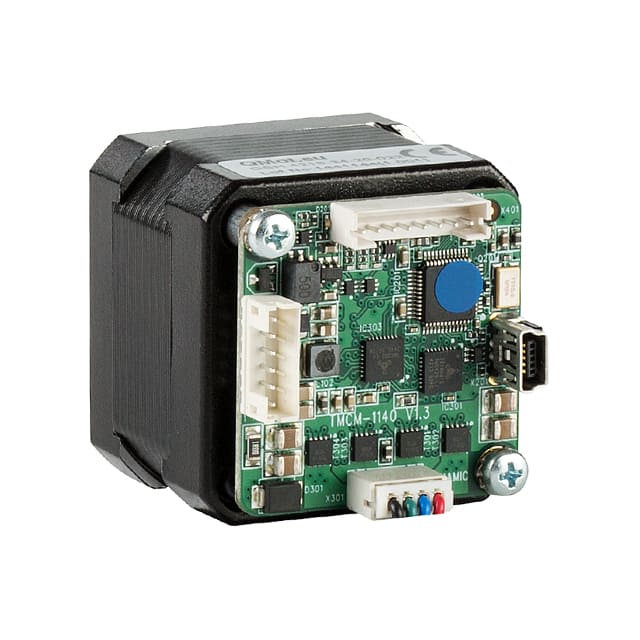

PANDRIVE NEMA17, 24V, 0.7NM
Product Attributes:
| Series | PANdrive™ |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 99.1 / 700 |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 2.3 Ohms |
| Features | Integrated Controller, Flatted Shaft |
in stockINR 36970.28999999999
Trinamic Motion Control GmbH
1 1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- MOTORS/ACTUATORS/SOLEENOIDS/DRIVERS
- Trinamic Motion Control GmbH 1460-1268-ND
Trinamic Motion Control GmbH 1460-1268-ND
Sku: TT-DKEY-1460-1268-ND
₹36,970.29
SIZE GUIDE
Sold By: tenettech
Features
- Shipping in 10-12 Working Days
Description of product
PANDRIVE NEMA17, 24V, 0.7NM
Product Attributes:
| Series | PANdrive™ |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 99.1 / 700 |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| NEMA Frame Size | 17 |
| Diameter - Shaft | 0.197" (5.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Termination Style | Wire Leads with Connector |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 2.3 Ohms |
| Features | Integrated Controller, Flatted Shaft |
