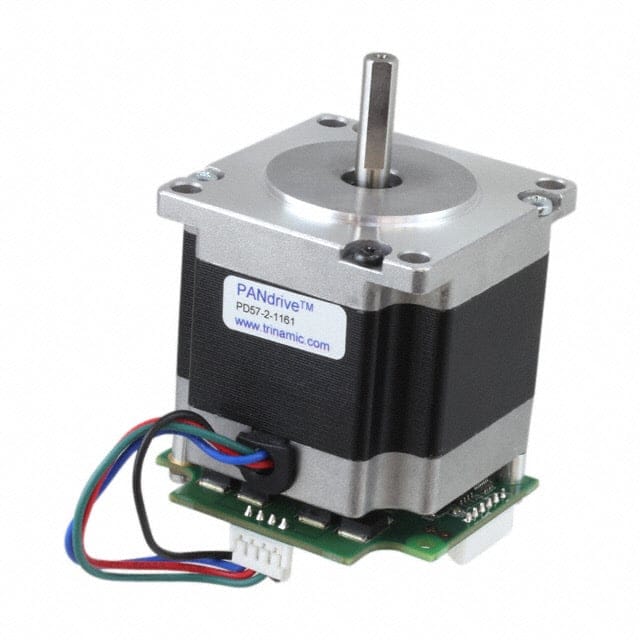

6405cc9f90c2cde818d32cd8 Trinamic Motion Control GmbH 1460-1119-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405cca190c2cde818d32cf4/pd57-2-1161.jpg

STEPPER MOTOR HYBRID BIPOLAR 24V

Product Attributes:

SeriesPANdrive™
Product StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)2.8 A
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)143.05 / 1010
Size / DimensionSquare - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size24
Diameter - Shaft0.250" (6.35mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.856" (47.14mm)
Termination StyleWire Leads with Connector
Operating Temperature-
Coil Resistance-
FeaturesIntegrated Controller, Flatted Shaft
TT-DKEY-1460-1119-ND
in stockINR 32364.000000000004
Trinamic Motion Control GmbH
1 1
Trinamic Motion Control GmbH 1460-1119-ND

Trinamic Motion Control GmbH 1460-1119-ND

Sku: TT-DKEY-1460-1119-ND
₹32,364


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR HYBRID BIPOLAR 24V

Product Attributes:

SeriesPANdrive™
Product StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)2.8 A
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)143.05 / 1010
Size / DimensionSquare - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size24
Diameter - Shaft0.250" (6.35mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.856" (47.14mm)
Termination StyleWire Leads with Connector
Operating Temperature-
Coil Resistance-
FeaturesIntegrated Controller, Flatted Shaft
