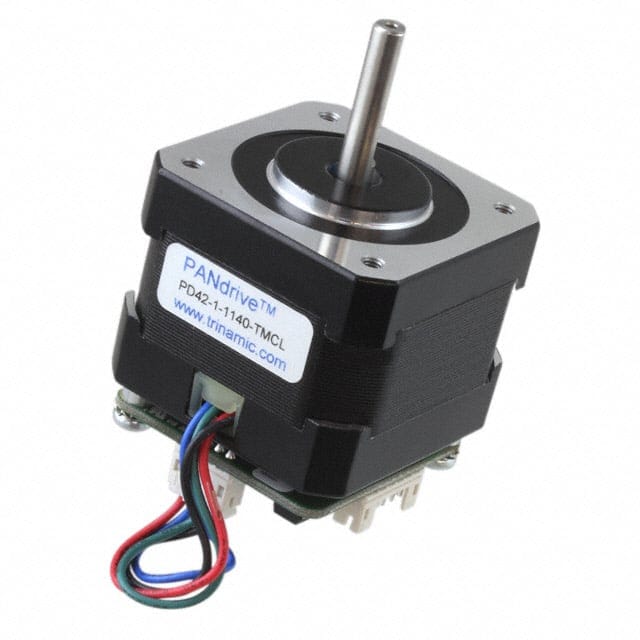

STEPPER MOTOR HYBRID BIPOLAR 24V

Product Attributes:

Series PANdrive™
Part Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 2 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 31.2 / 220
Size / Dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size 17
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing -
Termination Style Wire Leads with Connector
Operating Temperature -
Coil Resistance -
Features Integrated Controller, Flatted Shaft
TT-DKEY-1460-1099-ND
in stock INR 36324.23524
Trinamic Motion Control GmbH
1 1

Trinamic Motion Control GmbH 1460-1099-ND

Sku: TT-DKEY-1460-1099-ND
₹36,324.24


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR HYBRID BIPOLAR 24V

Product Attributes:

Series PANdrive™
Part Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Current Rating (Amps) 2 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 31.2 / 220
Size / Dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size 17
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing -
Termination Style Wire Leads with Connector
Operating Temperature -
Coil Resistance -
Features Integrated Controller, Flatted Shaft
