Trinamic Motion Control GmbH 1460-1085-ND
https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405cca404a16ce892012869/qsh8618-96-55-700.jpg
TT-DKEY-1460-1085-ND
STEP MOTOR HYBRID BIPOLAR 2.56V
Product Attributes:
| Series | QMot QSH8618 |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 2.56VDC |
| Current Rating (Amps) | 5.5 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 991.28 / 7000 |
| Size / Dimension | Square - 3.380" x 3.380" (85.85mm x 85.85mm) |
| NEMA Frame Size | 34 |
| Diameter - Shaft | 0.500" (12.70mm) |
| Length - Shaft and Bearing | 1.310" (33.27mm) |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 0.45 Ohms |
| Features | Flatted Shaft |
in stock
INR
Trinamic Motion Control GmbH
1
1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- MOTORS/ACTUATORS/SOLEENOIDS/DRIVERS
- Trinamic Motion Control GmbH 1460-1085-ND

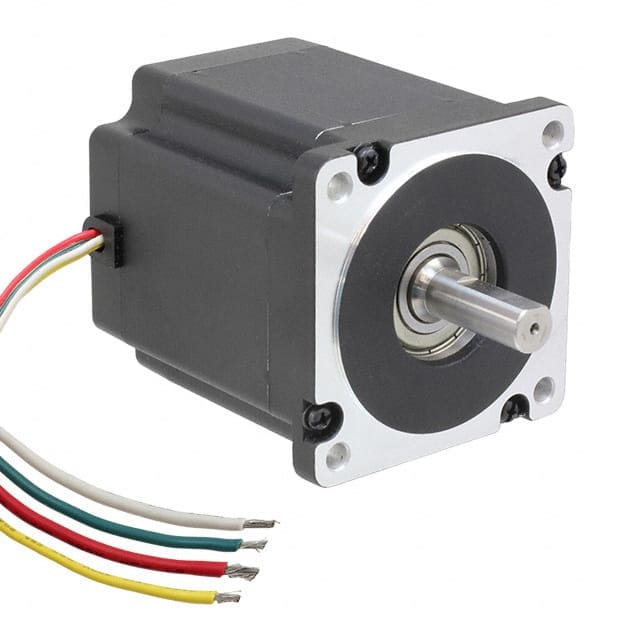

Trinamic Motion Control GmbH 1460-1085-ND
Sku:
TT-DKEY-1460-1085-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
STEP MOTOR HYBRID BIPOLAR 2.56V
Product Attributes:
| Series | QMot QSH8618 |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 2.56VDC |
| Current Rating (Amps) | 5.5 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 991.28 / 7000 |
| Size / Dimension | Square - 3.380" x 3.380" (85.85mm x 85.85mm) |
| NEMA Frame Size | 34 |
| Diameter - Shaft | 0.500" (12.70mm) |
| Length - Shaft and Bearing | 1.310" (33.27mm) |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 0.45 Ohms |
| Features | Flatted Shaft |
