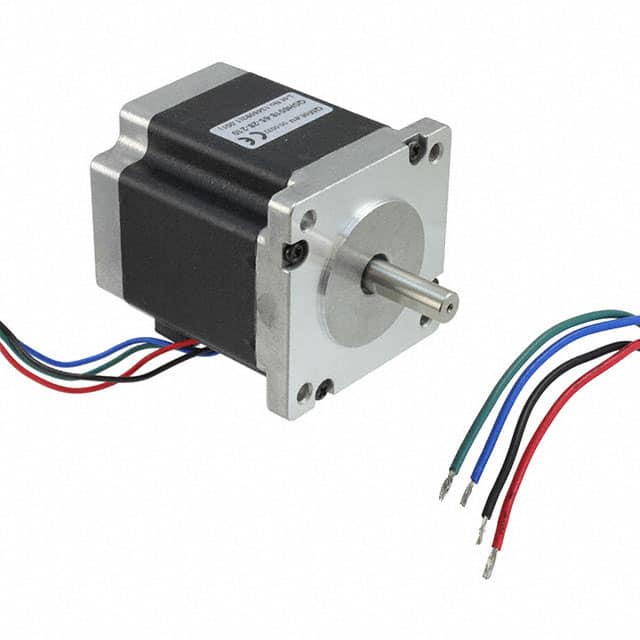

+918023404924 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.settings/5256837ccc4abf1d39000001/59dafe26aef6e1d20402c4c3-480x480.png" [email protected] 6405cc80b8fc32a58537cc31 Trinamic Motion Control GmbH 1460-1083-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405cc82b8fc32a58537cc46/qsh6018-65-28-210.jpg
TT-DKEY-1460-1083-ND
STEP MOTOR HYBRID BIPOLAR 3.36V
Product Attributes:
| Series | QMot QSH6018 |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 3.36VDC |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 297.38 / 2100 |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) |
| NEMA Frame Size | 24 |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 1.2 Ohms |
| Features | Flatted Shaft |
in stockINR 16018.784999999998
Trinamic Motion Control GmbH
1 1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- MOTORS/ACTUATORS/SOLEENOIDS/DRIVERS
- Trinamic Motion Control GmbH 1460-1083-ND
Trinamic Motion Control GmbH 1460-1083-ND
Sku: TT-DKEY-1460-1083-ND
₹16,018.78
SIZE GUIDE
Sold By: tenettech
Features
- Shipping in 10-12 Working Days
Description of product
STEP MOTOR HYBRID BIPOLAR 3.36V
Product Attributes:
| Series | QMot QSH6018 |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 3.36VDC |
| Current Rating (Amps) | 2.8 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 297.38 / 2100 |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) |
| NEMA Frame Size | 24 |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 1.2 Ohms |
| Features | Flatted Shaft |
