Overview

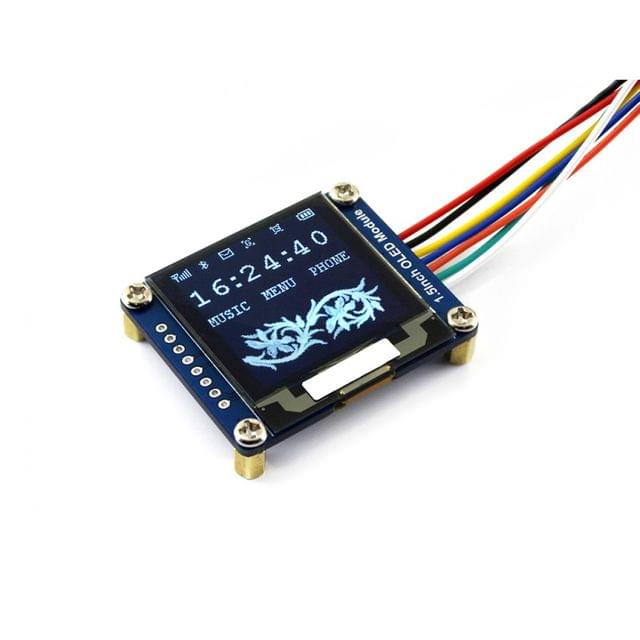

This is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.
Features
- 128x128 high resolution
- 16 gray scale, better display effect
- Supports SPI or I2C interface, configured via onboard resistor
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Driver: SSD1327
- Interface: SPI / I2C
- Display color: White
- Gray scale: 16
- Resolution: 128x128 (most other competitive products are typically 128x64)
- Viewing angle: >160°
- Operating voltage: 3.3V / 5V
- Dimension: 44.5 x 37 (mm)
Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | Power (3.3~5V input) |
| GND | Ground |
| DIN | Data input |
| CLK | Clock data input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
There are two available drive interfaces for this OLED module: 4-wire SPI and I2C:
| BS | CS | DC | DIN | CLK | |
|---|---|---|---|---|---|
| 4-wire SPI | 0 | Chip select | Data/Command | MOSI | SCK |
| I2C | 1 | NC | I2C address selection | SDA | SCL |
- Home
- 128x128, General 1.5inch OLED display Module
128x128, General 1.5inch OLED display Module
SIZE GUIDE
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1ba4c6c370e38b432917f2/images/5e3bc469c0b56f1ff162ae0f/5e3bc45df2e2b5205b2e2ae1/5e3bc45df2e2b5205b2e2ae1.jpg
Description of product
Overview
This is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.
Features
- 128x128 high resolution
- 16 gray scale, better display effect
- Supports SPI or I2C interface, configured via onboard resistor
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Driver: SSD1327
- Interface: SPI / I2C
- Display color: White
- Gray scale: 16
- Resolution: 128x128 (most other competitive products are typically 128x64)
- Viewing angle: >160°
- Operating voltage: 3.3V / 5V
- Dimension: 44.5 x 37 (mm)
Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | Power (3.3~5V input) |
| GND | Ground |
| DIN | Data input |
| CLK | Clock data input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
There are two available drive interfaces for this OLED module: 4-wire SPI and I2C:
| BS | CS | DC | DIN | CLK | |
|---|---|---|---|---|---|
| 4-wire SPI | 0 | Chip select | Data/Command | MOSI | SCK |
| I2C | 1 | NC | I2C address selection | SDA | SCL |
