67add77001dc020024b5496c Panasonic Industrial Automation Sales 1110-4417-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67add77101dc020024b5497f/msmf021l1t2.jpg

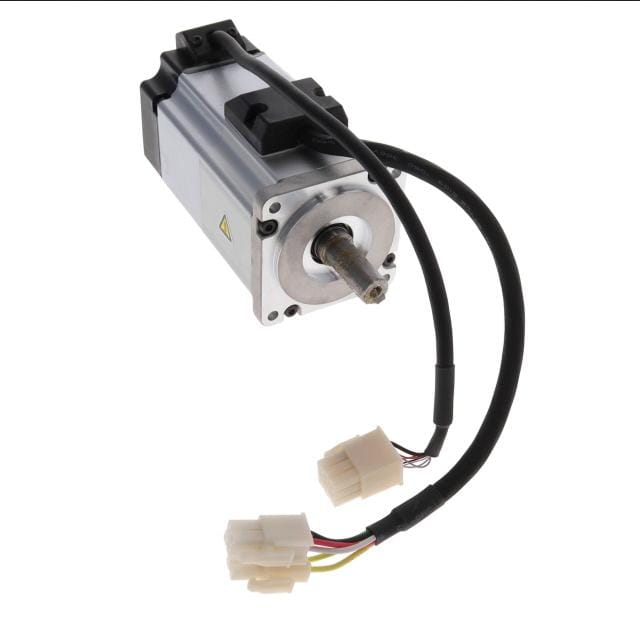

MOTOR AC SERVO 100V LI 200W IP65

Product Attributes:

Series MINAS A6
Product Status Active
Type AC Motor
Function Servomotor
Motor Type -
Voltage - Rated 100VAC
RPM 3000 RPM
Torque - Rated (oz-in / mNm) 90.65 / 640
Power - Rated 200W
Encoder Type Absolute
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Diameter - Shaft 0.457" (11.60mm)
Length - Shaft and Bearing 1.181" (30.00mm)
Mounting Hole Spacing 2.756" (70.00mm)
Termination Style Cable with Connector
Features Brake, Key
Gear Reduction Ratio -
Torque - Max Momentary (oz-in / mNm) 270.5 / 1910
Operating Temperature 0°C ~ 55°C
TT-DKEY-1110-4417-ND
in stock INR
Panasonic Industrial Automation Sales
1 1
Panasonic Industrial Automation Sales 1110-4417-ND

Panasonic Industrial Automation Sales 1110-4417-ND

Sku: TT-DKEY-1110-4417-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

MOTOR AC SERVO 100V LI 200W IP65

Product Attributes:

Series MINAS A6
Product Status Active
Type AC Motor
Function Servomotor
Motor Type -
Voltage - Rated 100VAC
RPM 3000 RPM
Torque - Rated (oz-in / mNm) 90.65 / 640
Power - Rated 200W
Encoder Type Absolute
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Diameter - Shaft 0.457" (11.60mm)
Length - Shaft and Bearing 1.181" (30.00mm)
Mounting Hole Spacing 2.756" (70.00mm)
Termination Style Cable with Connector
Features Brake, Key
Gear Reduction Ratio -
Torque - Max Momentary (oz-in / mNm) 270.5 / 1910
Operating Temperature 0°C ~ 55°C
