+918023404924 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.settings/5256837ccc4abf1d39000001/59dafe26aef6e1d20402c4c3-480x480.png" [email protected] 6405cc1e2f979adb41bc17ba CUI Devices 102-4724-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405cc1f2f979adb41bc1802/mfg_nema23.jpg
TT-DKEY-102-4724-ND

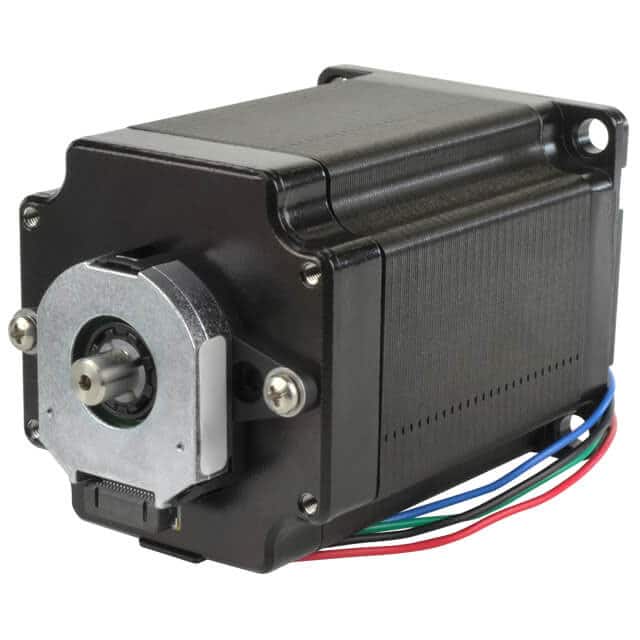

STEPPER MOTOR W/ INCREMENTAL ENC
Product Attributes:
| Series | NEMA23-AMT112S |
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24 ~ 80VDC |
| Current Rating (Amps) | 1.4 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±0.2% |
| Torque - Holding (oz-in / mNm) | 85 / 600.23 |
| Size / Dimension | Square - 2.252" x 2.252" (57.20mm x 57.20mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.250" (6.35mm) |
| Length - Shaft and Bearing | 0.811" (20.60mm) |
| Mounting Hole Spacing | 1.819" (46.20mm) |
| Termination Style | Connector |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 2.8 Ohms |
| Features | Integrated Encoder, Flatted Shaft |
in stockINR
CUI Devices
1 1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- MOTORS/ACTUATORS/SOLEENOIDS/DRIVERS
- CUI Devices 102-4724-ND
CUI Devices 102-4724-ND
Sku: TT-DKEY-102-4724-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By: tenettech
Features
- Shipping in 10-12 Working Days
Description of product
STEPPER MOTOR W/ INCREMENTAL ENC
Product Attributes:
| Series | NEMA23-AMT112S |
| Product Status | Active |
| Type | - |
| Coil Type | Bipolar |
| Voltage - Rated | 24 ~ 80VDC |
| Current Rating (Amps) | 1.4 A |
| Steps per Revolution | 200 |
| Step Angle | 1.8° |
| Accuracy | ±0.2% |
| Torque - Holding (oz-in / mNm) | 85 / 600.23 |
| Size / Dimension | Square - 2.252" x 2.252" (57.20mm x 57.20mm) |
| NEMA Frame Size | 23 |
| Diameter - Shaft | 0.250" (6.35mm) |
| Length - Shaft and Bearing | 0.811" (20.60mm) |
| Mounting Hole Spacing | 1.819" (46.20mm) |
| Termination Style | Connector |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 2.8 Ohms |
| Features | Integrated Encoder, Flatted Shaft |
