6405cc9f2f979adb41bc303f CUI Devices 102-4720-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6405cca02f979adb41bc3076/mfg_nema23.jpg

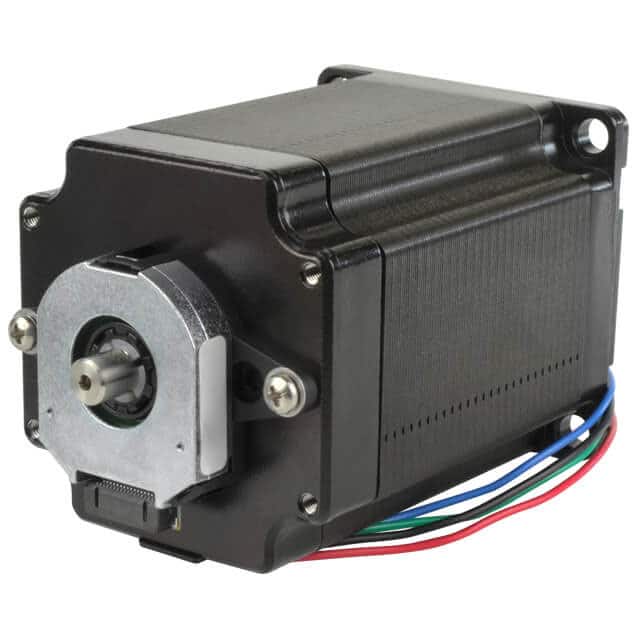

STEPPER MOTOR W/ INCREMENTAL ENC

Product Attributes:

Series NEMA23-AMT112S
Product Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24 ~ 80VDC
Current Rating (Amps) 1.4 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±0.2%
Torque - Holding (oz-in / mNm) 270 / 1906.62
Size / Dimension Square - 2.252" x 2.252" (57.20mm x 57.20mm)
NEMA Frame Size 23
Diameter - Shaft 0.250" (6.35mm)
Length - Shaft and Bearing 0.811" (20.60mm)
Mounting Hole Spacing 1.819" (46.20mm)
Termination Style Connector
Operating Temperature -20°C ~ 50°C
Coil Resistance 4.5 Ohms
Features Integrated Encoder, Flatted Shaft
TT-DKEY-102-4720-ND
in stock INR 18916.2
CUI Devices
1 1

CUI Devices 102-4720-ND

Sku: TT-DKEY-102-4720-ND
₹18,916.2


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR W/ INCREMENTAL ENC

Product Attributes:

Series NEMA23-AMT112S
Product Status Active
Type -
Coil Type Bipolar
Voltage - Rated 24 ~ 80VDC
Current Rating (Amps) 1.4 A
Steps per Revolution 200
Step Angle 1.8°
Accuracy ±0.2%
Torque - Holding (oz-in / mNm) 270 / 1906.62
Size / Dimension Square - 2.252" x 2.252" (57.20mm x 57.20mm)
NEMA Frame Size 23
Diameter - Shaft 0.250" (6.35mm)
Length - Shaft and Bearing 0.811" (20.60mm)
Mounting Hole Spacing 1.819" (46.20mm)
Termination Style Connector
Operating Temperature -20°C ~ 50°C
Coil Resistance 4.5 Ohms
Features Integrated Encoder, Flatted Shaft
