6152fd2adc0eaa13a44387dd Littelfuse Inc. 0224003.MXP-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6152fd2bdc0eaa13a4438813/2agpercent20subminpercent20224percent20series.jpg

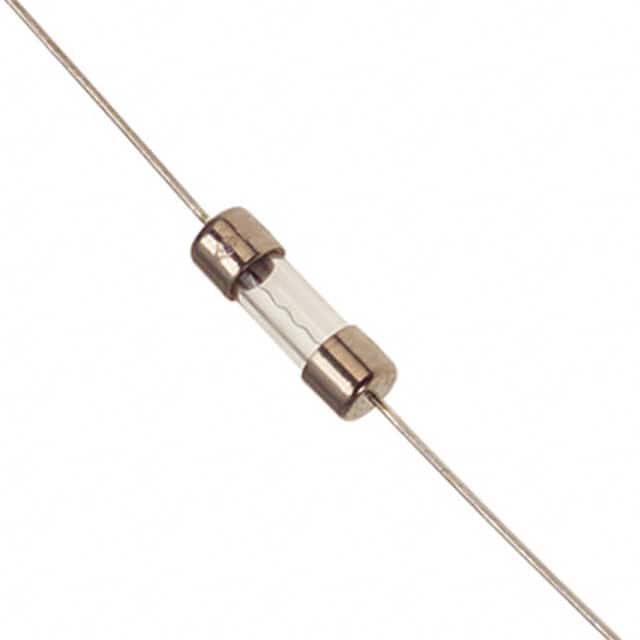

FUSE GLASS 3A 250VAC 125VDC 2AG

Product Attributes:

Series224
Part StatusActive
Mounting TypeThrough Hole
Fuse TypeCartridge, Glass
Current Rating (Amps)3 A
Voltage Rating - AC250 V
Voltage Rating - DC125 V
Response TimeFast Blow
Package / Case2AG, 5mm x 15mm (Axial)
Breaking Capacity @ Rated Voltage100A AC, 10kA DC
Melting I²t4.62
Approval AgencyCE, CSA, PSE, UL
Operating Temperature-55°C ~ 125°C
Color-
Size / Dimension0.185" Dia x 0.570" L (4.70mm x 14.48mm)
TT-DKEY-0224003.MXP-ND
in stockINR 558.965836
Littelfuse Inc.
1 1
Littelfuse Inc. 0224003.MXP-ND

Littelfuse Inc. 0224003.MXP-ND

Sku: TT-DKEY-0224003.MXP-ND
₹558.97


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

FUSE GLASS 3A 250VAC 125VDC 2AG

Product Attributes:

Series224
Part StatusActive
Mounting TypeThrough Hole
Fuse TypeCartridge, Glass
Current Rating (Amps)3 A
Voltage Rating - AC250 V
Voltage Rating - DC125 V
Response TimeFast Blow
Package / Case2AG, 5mm x 15mm (Axial)
Breaking Capacity @ Rated Voltage100A AC, 10kA DC
Melting I²t4.62
Approval AgencyCE, CSA, PSE, UL
Operating Temperature-55°C ~ 125°C
Color-
Size / Dimension0.185" Dia x 0.570" L (4.70mm x 14.48mm)
