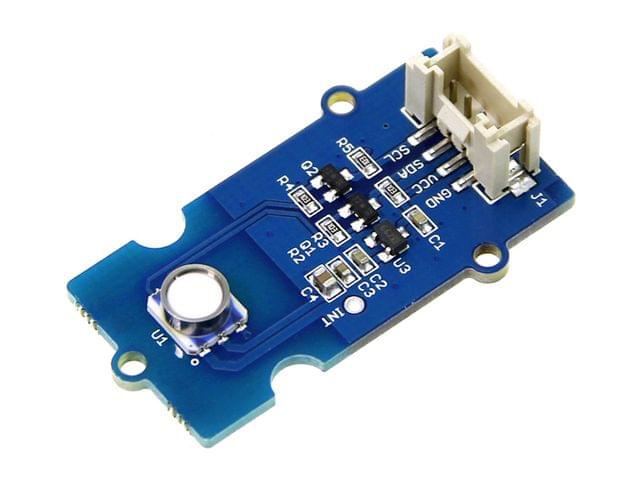

5b163651b58c40dfa2b94c45 Grove - Barometer (High-Accuracy) https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b163651b58c40dfa2b94c45/images/5b163651b58c40dfa2b94c46/5b1635bf4eac50df23c42938/webp/5b1635bf4eac50df23c42938.jpg

Description

This Grove - Barometer (High-Accuracy) Sensor features a HP206C high-accuracy chip to detect barometric pressure ,Altimeter and temperature. It can widely measure pressure ranging from 300mbar~1200mbar, with a super high accuracy of 0.01mbar(0.1m) in ultra-high resolution mode.The chip only accepts 1.8V to 3.6V input voltage. However, with outer circuit added, this module becomes compatible with 3.3V and 5V. Therefore, it can be used on Arduino/Seeeduino or Seeeduino Stalker without modification.It is designed to be connected directly to a micro-controller via the I2C bus.

Features
  • Digital two wire (I2C) interface

  • Command-based Reading, Compensated (Optional)

  • Programmable Events and Interrupt Controls

  • Full Data Compensation

  • Wide barometric pressure range

  • Flexible supply voltage range

  • Ultra-low power consumption

  • Altitude Resolution down to 0.01 meter

  • Temperature measurement included



Technical Details

Dimensions 140mm x 85mm x 10.6mm
Weight G.W 8g
Battery Exclude

Part List

Grove - Barometer (High-Accuracy) 1
Grove - cable 1
    TT-SS- 101020068
    in stock INR 2296
    SEEEDSTUDIO
    1 1
    XYZ Blog title
    ABC Blog title here
    Grove - Barometer (High-Accuracy)

    Description of product

    Description

    This Grove - Barometer (High-Accuracy) Sensor features a HP206C high-accuracy chip to detect barometric pressure ,Altimeter and temperature. It can widely measure pressure ranging from 300mbar~1200mbar, with a super high accuracy of 0.01mbar(0.1m) in ultra-high resolution mode.The chip only accepts 1.8V to 3.6V input voltage. However, with outer circuit added, this module becomes compatible with 3.3V and 5V. Therefore, it can be used on Arduino/Seeeduino or Seeeduino Stalker without modification.It is designed to be connected directly to a micro-controller via the I2C bus.

    Features
    • Digital two wire (I2C) interface

    • Command-based Reading, Compensated (Optional)

    • Programmable Events and Interrupt Controls

    • Full Data Compensation

    • Wide barometric pressure range

    • Flexible supply voltage range

    • Ultra-low power consumption

    • Altitude Resolution down to 0.01 meter

    • Temperature measurement included



    Technical Details

    Dimensions 140mm x 85mm x 10.6mm
    Weight G.W 8g
    Battery Exclude

    Part List

    Grove - Barometer (High-Accuracy) 1
    Grove - cable 1
