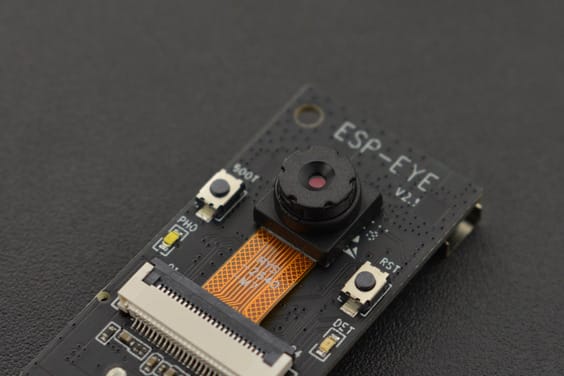

6002e3b5bf66986a34405ff1 ESP-EYE Development Board //cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/6002e382acfb1a12023e6ae8/webp/dfr0620-detail-003_564x376.jpg

Description:

ESP-EYE is a development board for image recognition and speech signal processing, on which it integrates an on-board ESP32 chip, a 2 megapixel camera, and a digital microphone, 8MByte PSRAM and 4MByte flash. The board also supports image transmission via Wi-Fi and debugging through a Micro-USB port.

What’s more, there is a complete AIoT solution for the product, including the ESP-EYE development board, ESP-WHO AI frameworks, and ESP-IDF software SDK, which enables users to explore the benefits of combining of AI technology and IoT applications.

ESP-WHO is a face detection and recognition development framework designed for AIoT applications. Combining with the ESP-EYE development board, or other ESP32-based development board, then by adding only a few peripherals, such as camera and screens, you can easily build a complete AIoT application.

ESP-EYE supports firmware burning with a Windows or Linux PC, also you can use a Raspberry Pi to develop projects based on this board. For instance, use ESP-WHO to realize face detection and recognition, after burning firmware for ESP-EYE with Windows or Raspberry Pi, you can use mobile device to connect the board’s WIFI to transmit image or detect face.

Features:

  • ESP32 Chip
  • 2 Megapixel camera
  • 4 Mbyte Flash
  • 8 Mbyte PSRAM
  • Support Image Transmission via WiFi
  • Debugging and Power Supply via Micro USB
  • Support Windows and Raspberry Pi
  • ESP-IDF Software SDK
  • ESP-WHO AI Framework
  • Face Detection and Recognition

Specifications:

  • Power Supply: 5V
  • Operating Current: 0.5A
  • Total Current Output from I/O: 1200mA
  • Operating Temperature: -40~125℃
  • Storage Temperature: -50~150℃
  • Dimension: 41.00x21.00x6.50mm/1.61x0.83x0.26”
TT-356-ESP-EYE
in stockINR 2742.32
DFRobot
1 1
ESP-EYE Development Board

ESP-EYE Development Board

Sku: TT-356-ESP-EYE
₹2,742.32


Sold By: tenettech
Features
  • 1 no in ready stock.

Description of product

Description:

ESP-EYE is a development board for image recognition and speech signal processing, on which it integrates an on-board ESP32 chip, a 2 megapixel camera, and a digital microphone, 8MByte PSRAM and 4MByte flash. The board also supports image transmission via Wi-Fi and debugging through a Micro-USB port.

What’s more, there is a complete AIoT solution for the product, including the ESP-EYE development board, ESP-WHO AI frameworks, and ESP-IDF software SDK, which enables users to explore the benefits of combining of AI technology and IoT applications.

ESP-WHO is a face detection and recognition development framework designed for AIoT applications. Combining with the ESP-EYE development board, or other ESP32-based development board, then by adding only a few peripherals, such as camera and screens, you can easily build a complete AIoT application.

ESP-EYE supports firmware burning with a Windows or Linux PC, also you can use a Raspberry Pi to develop projects based on this board. For instance, use ESP-WHO to realize face detection and recognition, after burning firmware for ESP-EYE with Windows or Raspberry Pi, you can use mobile device to connect the board’s WIFI to transmit image or detect face.

Features:

  • ESP32 Chip
  • 2 Megapixel camera
  • 4 Mbyte Flash
  • 8 Mbyte PSRAM
  • Support Image Transmission via WiFi
  • Debugging and Power Supply via Micro USB
  • Support Windows and Raspberry Pi
  • ESP-IDF Software SDK
  • ESP-WHO AI Framework
  • Face Detection and Recognition

Specifications:

  • Power Supply: 5V
  • Operating Current: 0.5A
  • Total Current Output from I/O: 1200mA
  • Operating Temperature: -40~125℃
  • Storage Temperature: -50~150℃
  • Dimension: 41.00x21.00x6.50mm/1.61x0.83x0.26”
