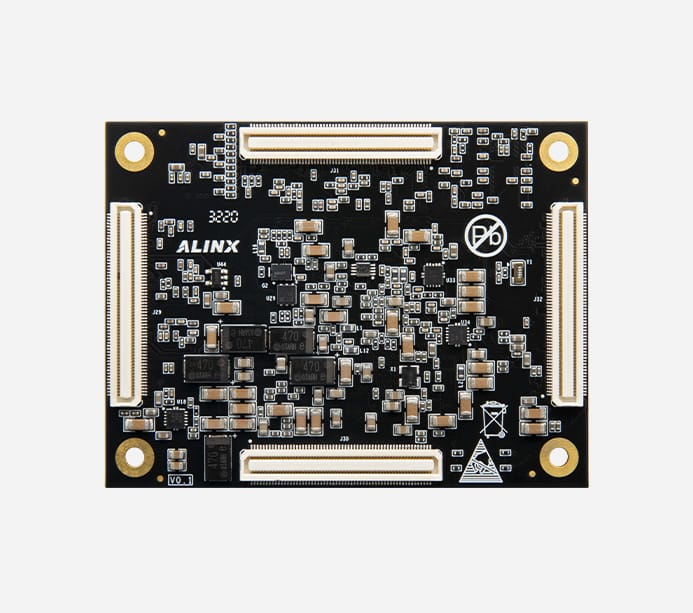

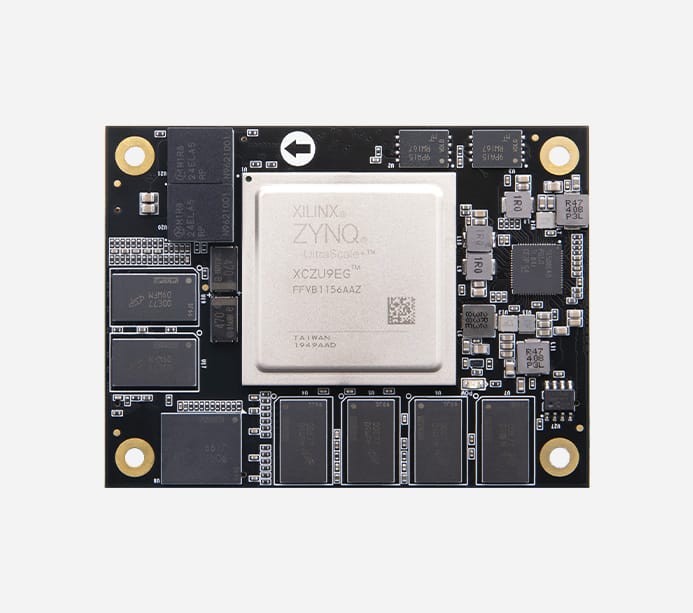

65783e3290c73255578c926a Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU9EG XCZU9EG https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/65783d4e4fd91f5d664ca509/f5.jpg

Product Performance

Main Parameters

Core board ACU9EG

FPGA Chip XCZU9EG-2FFVB1156I

Chip CPU 4x ARM Cortex-A53, 1.333GHz; 2x Cortex™-R5, 533MHz

Chip GPU Mali™-400 MP2

RAM PS DDR4 4GB, 64bit, 2400Mbps PL DDR4 2GB, 32bit, 2400Mbps

PS-end High Speed Connection PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort , 4x Tri-mode Gigabit Ethernet

PS-end General Connection 2x USB 2.0, 2x SD / SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

PL-end GTH 12.5Gb/s x16

Chip Level Industrial Grade

Working Temperature -40°c~85°c

Speed Grades -2

Logic Cells 600K

CLB Flip-Flops 548K

Look Up Tables (LUTs) 274K

Global Clock 4

DSP Slices 2,520

MAX.DISTRIBU-TED RAM 8.8Mb

BLOCK RAM 32.1Mb

ULTRARAM -

EMMC FLASH 8GB

QSPI FLASH 64MB

HP I/O 96

HD I/O 66

Interface and Function

QSPI Flash 2 Pieces of 256 Mbit QSPI Flash, Used as FPGA User Data Storage

EMMC Flash 8GB, Used as Large-Capacity Storage System

40-120 Pin Expansion Ports Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator 33.333MHz Provide for the PS system 200MHz Provide DDR Reference Clock for the PL Logic

Power Supply Parameters

Voltage Input Board to Board Connector, +12V DC

DATA SHEET



 TT-XIL-6971390279168
in stock INR 155537.25
Xilinx
1 1
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU9EG XCZU9EG

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU9EG XCZU9EG

Sku: TT-XIL-6971390279168
Be the first to review this product
₹155,537.25
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 12-14 Working Days

Description of product

Product Performance

Main Parameters

Core board ACU9EG

FPGA Chip XCZU9EG-2FFVB1156I

Chip CPU 4x ARM Cortex-A53, 1.333GHz; 2x Cortex™-R5, 533MHz

Chip GPU Mali™-400 MP2

RAM PS DDR4 4GB, 64bit, 2400Mbps PL DDR4 2GB, 32bit, 2400Mbps

PS-end High Speed Connection PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort , 4x Tri-mode Gigabit Ethernet

PS-end General Connection 2x USB 2.0, 2x SD / SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

PL-end GTH 12.5Gb/s x16

Chip Level Industrial Grade

Working Temperature -40°c~85°c

Speed Grades -2

Logic Cells 600K

CLB Flip-Flops 548K

Look Up Tables (LUTs) 274K

Global Clock 4

DSP Slices 2,520

MAX.DISTRIBU-TED RAM 8.8Mb

BLOCK RAM 32.1Mb

ULTRARAM -

EMMC FLASH 8GB

QSPI FLASH 64MB

HP I/O 96

HD I/O 66

Interface and Function

QSPI Flash 2 Pieces of 256 Mbit QSPI Flash, Used as FPGA User Data Storage

EMMC Flash 8GB, Used as Large-Capacity Storage System

40-120 Pin Expansion Ports Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator 33.333MHz Provide for the PS system 200MHz Provide DDR Reference Clock for the PL Logic

Power Supply Parameters

Voltage Input Board to Board Connector, +12V DC

DATA SHEET
