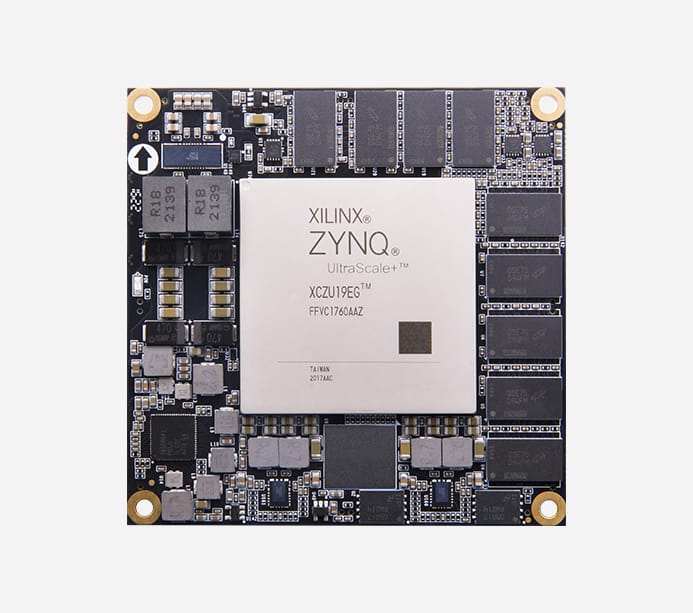

657837743fc12be2b16bc1a2 Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core board AI XCZU19EG XCZU19EG https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/657835fcbab437e952b49251/f1.jpg

Product Performance

Main Parameters

SoM Module ACU19EG

FPGA Chip XCZU19EG-2FFVC1760I

Chip CPU 4x ARM Cortex™-A53, 1.333GHz, Cortex™-R5 x2, 533MHz

GPU Mali™-400 MP2

RAM PS DDR4 5GB, 72bit, 2400Mbps, Support ECC PL DDR4 4GB, 64bit, 2400Mbps

PS side High-Speed Connection PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet

PS side General Connection 2x USB 2.0, 2 x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

Chip Level Industrial grade, -40°c~85°c

Logic Cells 1,143K

Flip-Flops 1,045K

LUTs 523K

Distributed RAM 9.8Mb

Block RAM 34.6Mb

UltraRAM 36.0Mb

CMTs 11

DSP Slices 1,968

Interface and Function

150G Interlaken 4

100G Ethernet 4

PL PCIE Gen 3 PCIE Gen3 x5

PL GTH 12.5Gb/s x32

PL GTY 28.21Gb/s x16

PL HP I/O 240

PL HD I/O 96

eMMC FLASH 32GB

QSPI FLASH 128MB

Expansion port 8-way 120-pin 0.5mm spacing extension connector with Panasonic high-speed industrial grade board-to-board connector

Crystal oscillator A RTC real-time clock provides 32.768 KHz , real-time clock source for PS system A single-ended 33.333MHz, crystal vibration is supplied to the PS system clock input

A Differential 200MHz crystal oscillation supplied to PL logic, DDR4 reference clock

Power Supply Parameters

Voltage Input Board to Board Connector, +12V DC

DATA SHEET











TT-XIL-ACU19EG
in stockINR
Xilinx
1 1
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core board AI XCZU19EG XCZU19EG

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core board AI XCZU19EG XCZU19EG

Sku: TT-XIL-ACU19EG

Product Enquiry

Sold By: tenettech
Features
  • Call for Pricing

Description of product

Product Performance

Main Parameters

SoM Module ACU19EG

FPGA Chip XCZU19EG-2FFVC1760I

Chip CPU 4x ARM Cortex™-A53, 1.333GHz, Cortex™-R5 x2, 533MHz

GPU Mali™-400 MP2

RAM PS DDR4 5GB, 72bit, 2400Mbps, Support ECC PL DDR4 4GB, 64bit, 2400Mbps

PS side High-Speed Connection PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet

PS side General Connection 2x USB 2.0, 2 x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

Chip Level Industrial grade, -40°c~85°c

Logic Cells 1,143K

Flip-Flops 1,045K

LUTs 523K

Distributed RAM 9.8Mb

Block RAM 34.6Mb

UltraRAM 36.0Mb

CMTs 11

DSP Slices 1,968

Interface and Function

150G Interlaken 4

100G Ethernet 4

PL PCIE Gen 3 PCIE Gen3 x5

PL GTH 12.5Gb/s x32

PL GTY 28.21Gb/s x16

PL HP I/O 240

PL HD I/O 96

eMMC FLASH 32GB

QSPI FLASH 128MB

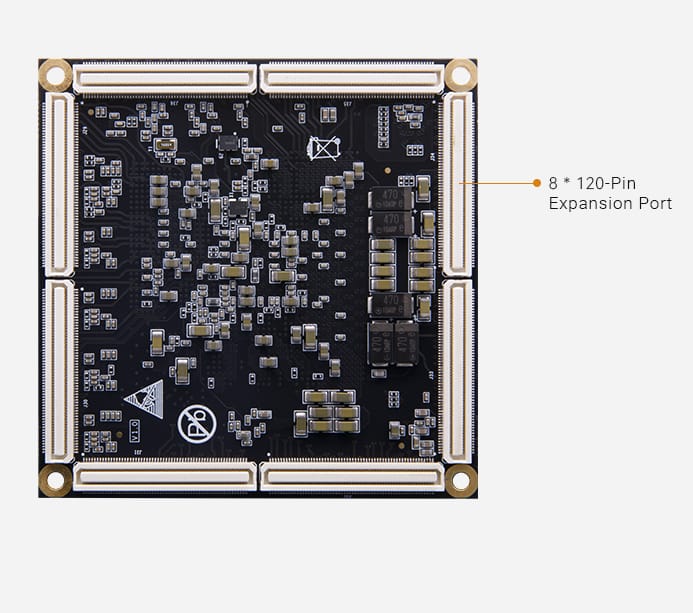

Expansion port 8-way 120-pin 0.5mm spacing extension connector with Panasonic high-speed industrial grade board-to-board connector

Crystal oscillator A RTC real-time clock provides 32.768 KHz , real-time clock source for PS system A single-ended 33.333MHz, crystal vibration is supplied to the PS system clock input

A Differential 200MHz crystal oscillation supplied to PL logic, DDR4 reference clock

Power Supply Parameters

Voltage Input Board to Board Connector, +12V DC

DATA SHEET
