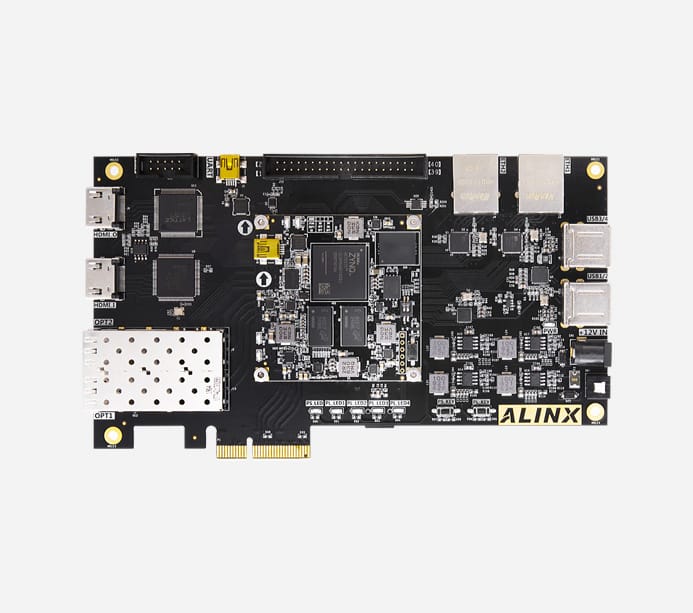

657018dd5a49ee497d7093b5 XILINX Zynq-7000 SoC XC7Z015 ARM FPGA Development Board https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/657016dfac65c9c0e73589cf/ax7015-01.jpg

PCIe 2.0 x2, SFP x2, Gigabit Ethernet x2, 8GB eMMC, 1GB DDR3, HDMI Input / Output, GTP

Product Parameters

Core Board Parameters

FPGA Board AX7015

FPGA Chip XC7Z015-2CLG485I

Kernel Dual-Core ARM Cortex-A9 Main Frequency 767MHz

Speed Grades -2

Working Temperature -40°c~85°c

Look Up Tables (LUTs) 46200

CLB Flip-Flops 92400

EMMC FLASH 8GB

Transceivers 4-Channels, PCIE Gen2 x4

PL IOs 148

LVDS 24

RAM DDR3 1GB, Data Rate 1066Mbps

Chip Level Industrial Grade

Logic Cells 74K

Multiplier 160 ( 18 x 25MACCs )

BLOCK RAM 3.3Mb

QSPI FLASH 256MBit

PS MIOs 39

Voltage Adjustable IO 50

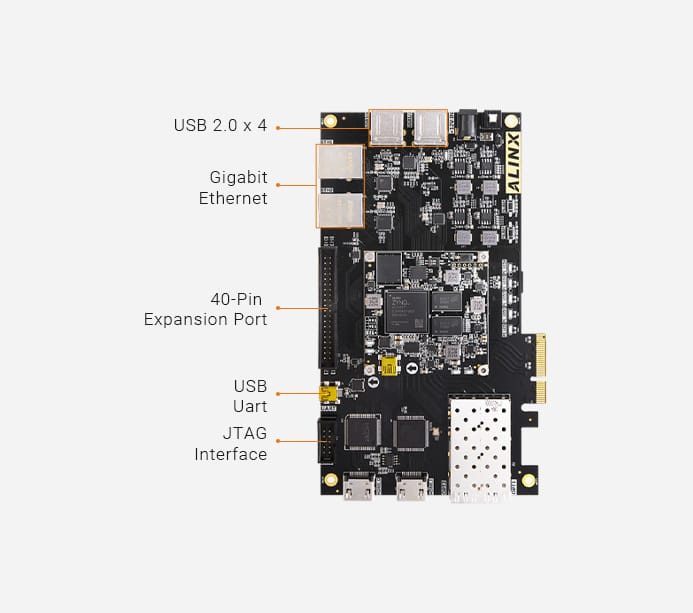

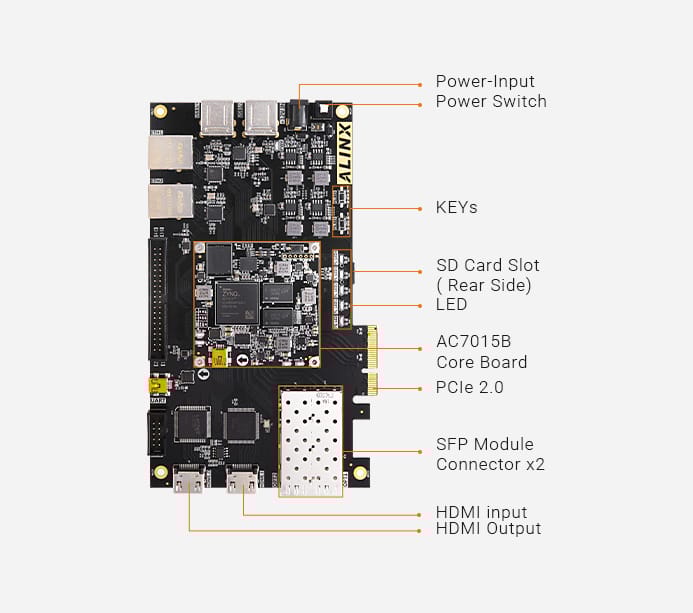

 Interface and Function

DDR3 2x 512MB DDR3, 32bit Bus, Data Rate 1066Mbps

QSPI Flash 256Mbit, Used as FPGA User Data Storage

eMMC Flash 8GB, Used as a Large-Capacity Storage Device in the ZYNQ System

Transceivers 4 GTP, each up to 6.25Gb/s, Used for SFP and PCIe Data Communication

SFP+ Interface 2-way High-Speed SFP+ Interface, the Receiving and Transmitting Speed of Each Channel is up to 6.25Gb/s

PCIe 2.0 Provides a Standard PCIe 2.0 x2 High-Speed Data Transmission Interface Single-Channel Communication Rate up to 5GBaud

Ethernet Interface Two 10 / 100M / 1000M with RJ-45 Interfaces for Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Debug and Download

HDMI input/Output HDMI Video Input and Output Interface, up to 1080P@60Hz Support 3D Output and Data Input in Different Formats

USB 2.0 4 USB2.0 Interface, Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk

USB Uart 2 USB Uart Interface, Used for Serial Communication with PC or External Devics

Crystal Oscillator 33.333 Mhz Provide Stable Clock Source for the PS System
125 Mhz Active Crystal Oscillator

SD Card Slot 1 Micro SD Card Slot, Support ted SD Mode and SPI Mode

LED 5 LED lights, 1 Controlled by PS, 4 Controlled by PL

KEYs 2 Keys and 1 Reset Key, 1 PS Control keys, 1 PL Control Keys

40-Pin Expansion Ports Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules ).





TT-XIL-AX7015/AX7015B
in stock INR
Xilinx
1 1

XILINX Zynq-7000 SoC XC7Z015 ARM FPGA Development Board

Sku: TT-XIL-AX7015/AX7015B

Product Enquiry

Sold By: tenettech
Features
  • Call for Pricing

Description of product

PCIe 2.0 x2, SFP x2, Gigabit Ethernet x2, 8GB eMMC, 1GB DDR3, HDMI Input / Output, GTP

Product Parameters

Core Board Parameters

FPGA Board AX7015

FPGA Chip XC7Z015-2CLG485I

Kernel Dual-Core ARM Cortex-A9 Main Frequency 767MHz

Speed Grades -2

Working Temperature -40°c~85°c

Look Up Tables (LUTs) 46200

CLB Flip-Flops 92400

EMMC FLASH 8GB

Transceivers 4-Channels, PCIE Gen2 x4

PL IOs 148

LVDS 24

RAM DDR3 1GB, Data Rate 1066Mbps

Chip Level Industrial Grade

Logic Cells 74K

Multiplier 160 ( 18 x 25MACCs )

BLOCK RAM 3.3Mb

QSPI FLASH 256MBit

PS MIOs 39

Voltage Adjustable IO 50

 Interface and Function

DDR3 2x 512MB DDR3, 32bit Bus, Data Rate 1066Mbps

QSPI Flash 256Mbit, Used as FPGA User Data Storage

eMMC Flash 8GB, Used as a Large-Capacity Storage Device in the ZYNQ System

Transceivers 4 GTP, each up to 6.25Gb/s, Used for SFP and PCIe Data Communication

SFP+ Interface 2-way High-Speed SFP+ Interface, the Receiving and Transmitting Speed of Each Channel is up to 6.25Gb/s

PCIe 2.0 Provides a Standard PCIe 2.0 x2 High-Speed Data Transmission Interface Single-Channel Communication Rate up to 5GBaud

Ethernet Interface Two 10 / 100M / 1000M with RJ-45 Interfaces for Data Exchange

JTAG 10-pin 0.1-inch Standard JTAG Port for Debug and Download

HDMI input/Output HDMI Video Input and Output Interface, up to 1080P@60Hz Support 3D Output and Data Input in Different Formats

USB 2.0 4 USB2.0 Interface, Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk

USB Uart 2 USB Uart Interface, Used for Serial Communication with PC or External Devics

Crystal Oscillator 33.333 Mhz Provide Stable Clock Source for the PS System
125 Mhz Active Crystal Oscillator

SD Card Slot 1 Micro SD Card Slot, Support ted SD Mode and SPI Mode

LED 5 LED lights, 1 Controlled by PS, 4 Controlled by PL

KEYs 2 Keys and 1 Reset Key, 1 PS Control keys, 1 PL Control Keys

40-Pin Expansion Ports Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules ).
